Technical reference

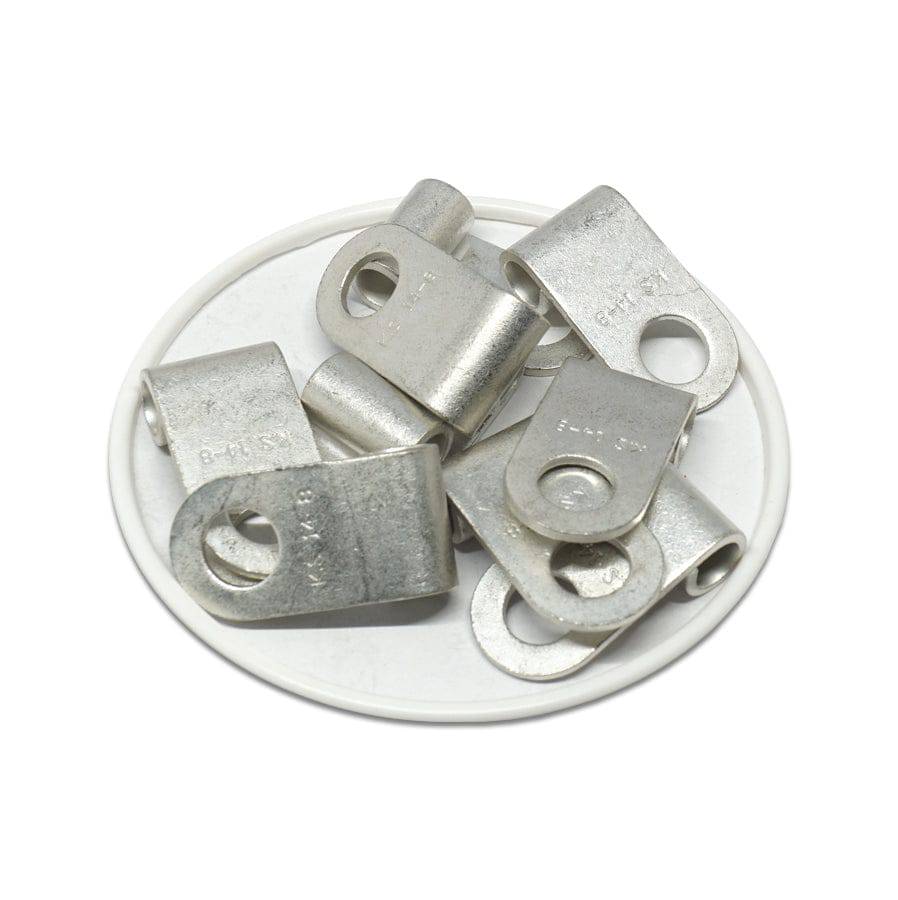

Procurement reference model: FGNB14-8. Wire Size: 6 AWG; Stud Size: 5/16"; T: 1.5mm (0.08"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| Wire Size | 6 AWG |
| Stud Size | 5/16" |
| T | 1.5mm (0.08") |
| L | 30.5mm (1.20)") |
| F | 13.5mm (0.53") |
| W | 16.0mm (0.63") |
| D | 9.0mm (0.35") |
| D1 | 5.8mm (0.22") |
| D2 | 8.4mm (0.33") |
| Material | Tin-Plated Copper |
| Temperature Rating | 105 o C |
| Volt Rating | 600 Volts |
| CE Certified | Yes |
| RoHS Compliant | Yes |
