Technical reference

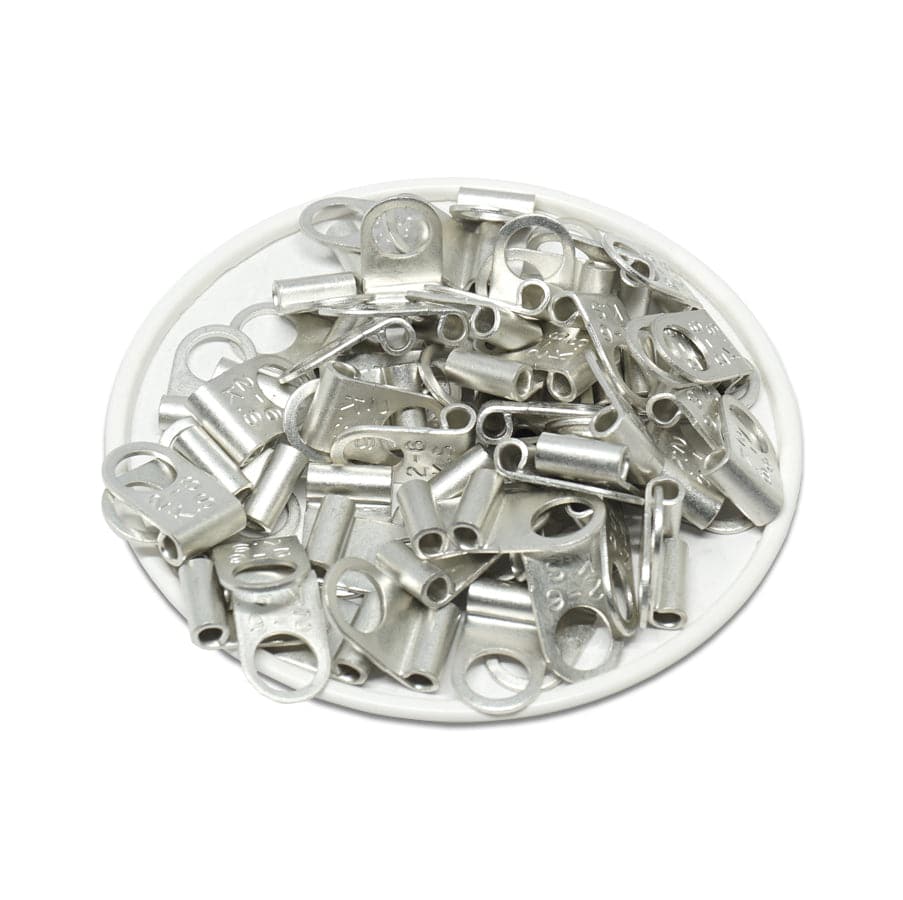

Procurement reference model: FGNB2-6. Wire Size: 16-14 AWG; Stud Size: 1/4"; T: 0.8mm (0.03"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Size | 1/4" |
| T | 0.8mm (0.03") |
| L | 16.3mm (0.64") |
| F | 7.3mm (0.28") |
| W | 9.6mm (0.37") |
| D | 4.1mm (0.16") |
| D1 | 2.3mm (0.09") |
| D2 | 6.4mm (0.22") |
| Material | Tin-Plated Copper |
| Temperature Rating | 105 o C |
| Volt Rating | 600 Volts |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
