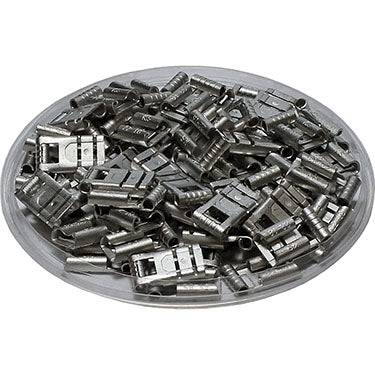

Procurement reference model: FLDNB1-250. Wire Size: 22-18 AWG; Terminal Material: Tin-Plated Brass; Nema Tab: 0.8 x 6.35mm (0.03 x 0.25"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-18 AWG |
| Terminal Material | Tin-Plated Brass |
| Nema Tab | 0.8 x 6.35mm (0.03 x 0.25") |
| Max Electrical Rating | 3-7 AMP |
| L | 14.0mm (0.56") |
| F | 8.5mm (0.33") |
| w | 7.5mm (0.29") |
| D | 7.4mm (0.29") |
| D1 | 1.7mm (0.07") |
| D2 | 2.7mm (0.11") |
| CE Certified | Yes |
| RoHS Compliant | Yes |
