Technical reference

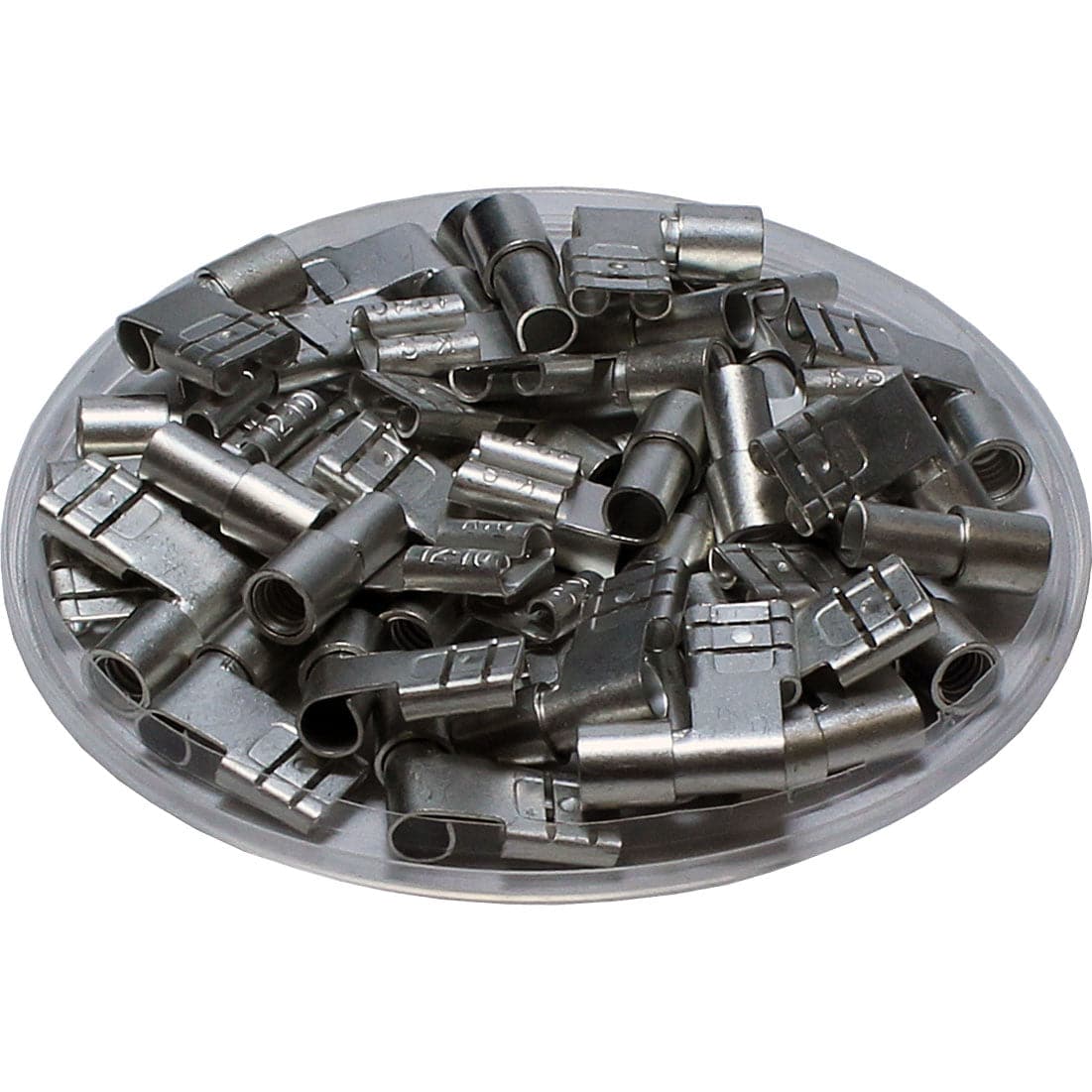

Procurement reference model: FLDNDX5-250. Wire Range: 12 to 10 AWG; Terminal Material: Tin-Plated Brass; Current: 24AMP. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 12 to 10 AWG |
| Terminal Material | Tin-Plated Brass |
| Current | 24AMP |
| Crimp | Double |
| NEMA Tab | 0.8mm x 6.35 (0.03" x 0.25) |
| W | 6.6mm (0.25") |
| F | 7.6mm (0.30") |
| L | 14.9mm (0.59") |
| C | 3.3mm (0.13") |
| B | 7.2mm (0.03") |
Drawings and product details
