Technical reference

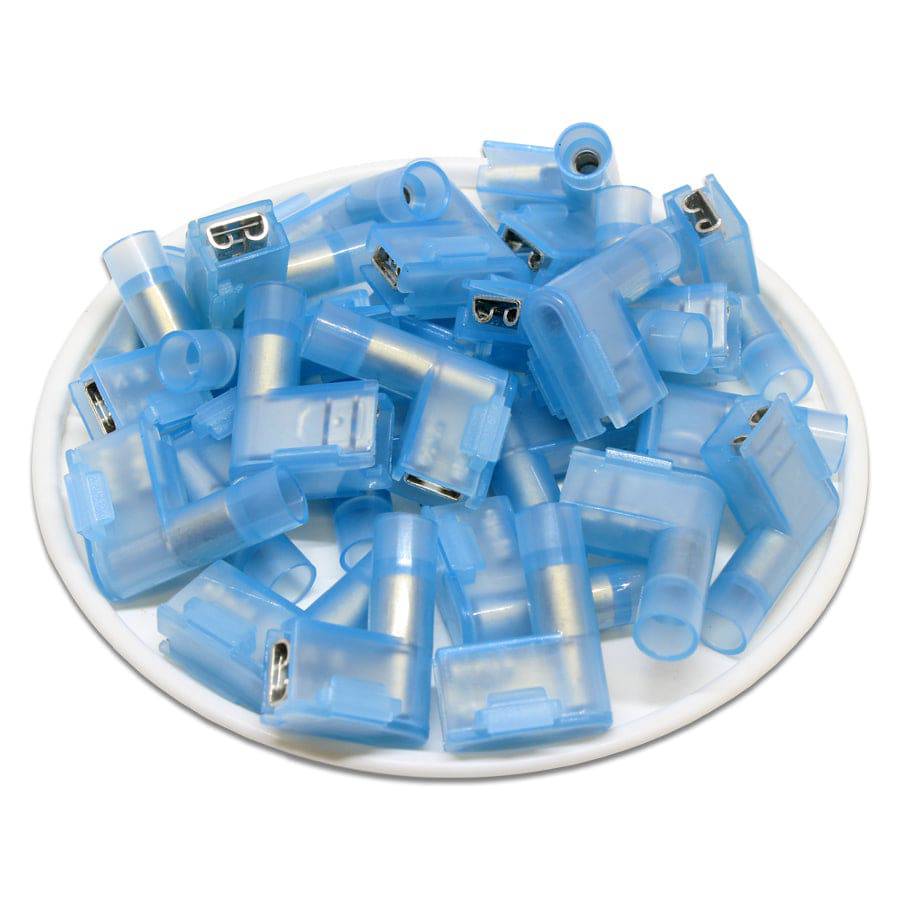

Procurement reference model: FLDNYDX2-187(5). Wire Size: 16-14 AWG; Color: Blue; Insulation Material: Nylon. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |
| Insulation Material | Nylon |
| Terminal Material | Tin-Plated Brass |
| Crimp | Double |
| Electrical Rating | 105 o C - 300 Volts |
| Current Rating | 10-15AMP |
| Nema Tab | 0.02" x 0.18" (0.5mm x 4.75mm) |
| L | 19.2mm (0.75") |
| F | 6.2mm (0.24") |
| W | 5.0mm (0.20") |
| C | 2.2mm (0.08") |
| B | 11.0mm (0.43") |
| D | 4.0mm (0.16") |
| UL Recognized | Yes |
| RoHS Compliant | Yes |
| CE Certified | Yes |
Drawings and product details
