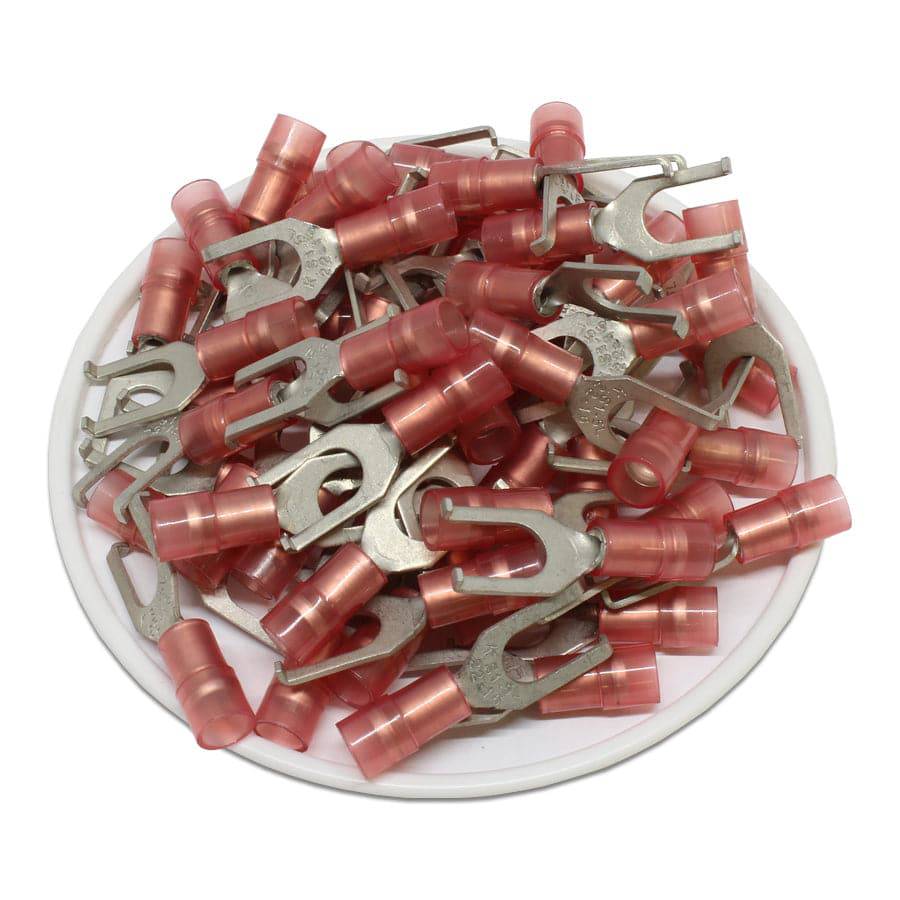

Procurement reference model: FSNYDL1-5. Wire Size: 22-16 AWG; Stud Size: #10 Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | #10 Stud |
| Color | Red |
| T | 0.75mm (0.03") |
| L | 25.5mm (1.0") |
| F | 7.2mm (0.28") |
| E | 11mm (0.43") |
| W | 8.5mm (0.34") |
| A | 1.5mm (0.06") |
| D | 4mm (0.16") |
| D1 | 1.7mm (0.07") |
| D2 | 5.3mm (0.21") |
| Seam | Brazed |
| Terminal Material | Tin-Plated Copper |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Amp Rating | 18A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
