Technical reference

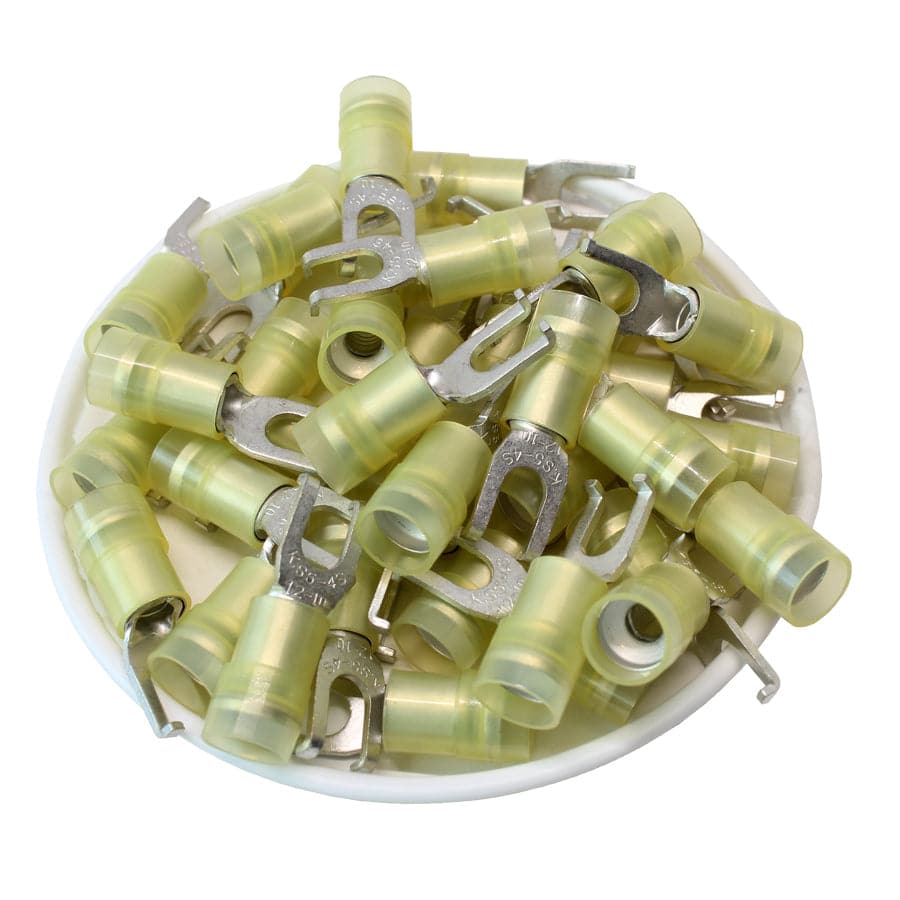

Procurement reference model: FSNYDS5-5. Wire Size: 12-10 AWG; Stud Size: #10 Stud; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Stud Size | #10 Stud |
| Color | Yellow |
| T | 1mm (0.04") |
| L | 25.5mm (1.0") |
| F | 6.2mm (0.24") |
| E | 13mm (0.51") |
| W | 7.6mm (0.30") |
| D | 6.4mm (0.25") |
| D1 | 3.4mm (0.13") |
| D2 | 5.3mm (0.21") |
| A | 1.5mm (0.06") |
| Seam | Brazed |
| Terminal Material | Tin-Plated Copper |
| Max Amp Rating | 50A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
