Technical reference

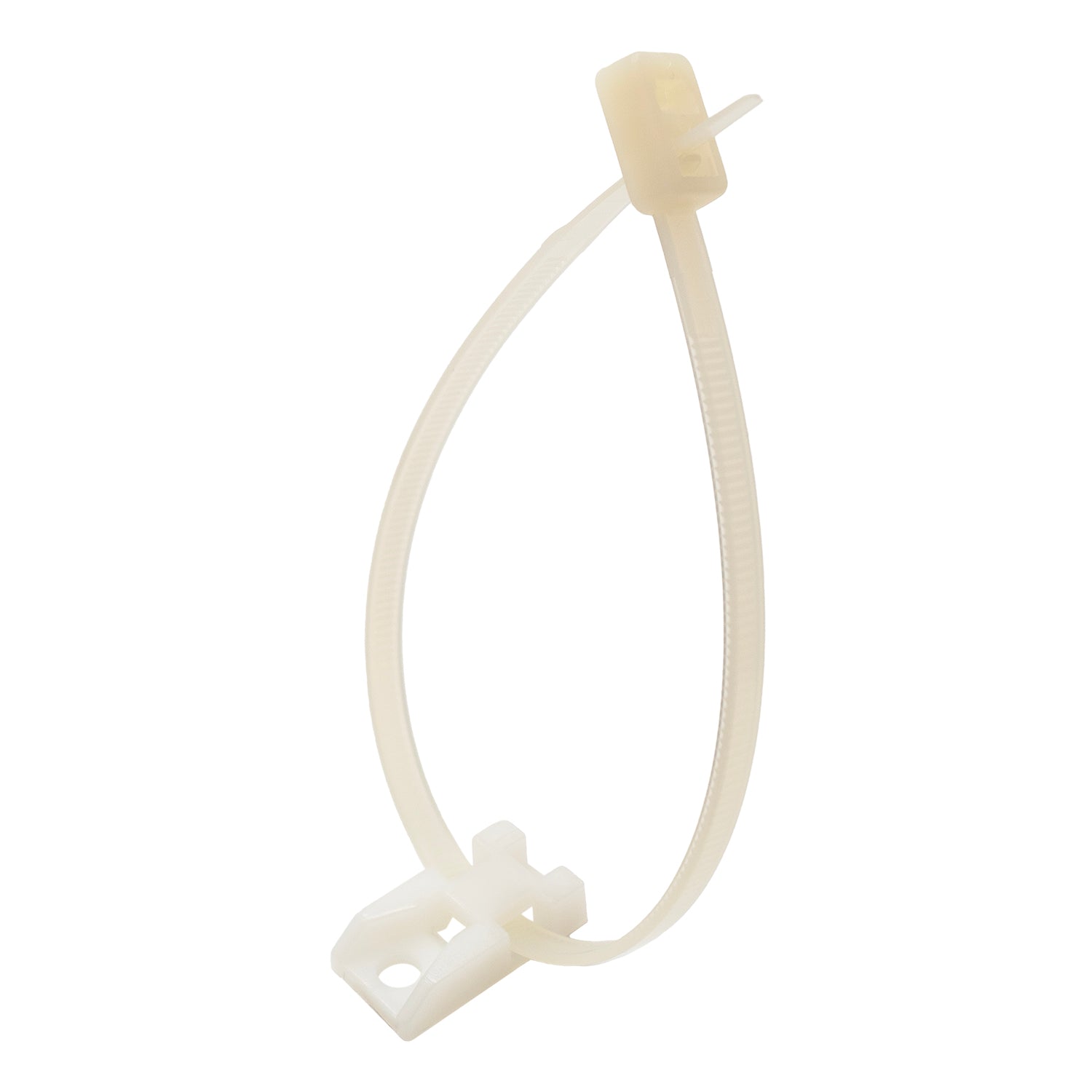

Procurement reference model: HC01N. Size (LxWxH): 0.94 x 0.51 x 0.24"; Color: Natural; L: 24mm (0.94"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Size (LxWxH) | 0.94 x 0.51 x 0.24" |
| Color | Natural |
| L | 24mm (0.94") |
| W | 13mm (0.51") |
| H | 6mm (0.24") |
| T (Cable Tie Slot Width) | 5.4mm (0.21") |
| B (Fixed Hole Size) | 4.6mm (0.18") |
| Mounting | Screw Mounted |
| Material | UL Approved 94UV-2 Nylon |
| Environment | Indoor |
| Flammability (Fire Rating) | UL 94V-2 |
| Gamma Radiation | 1x10 Rads |
| Temp Rating | -400°F to 185°F (-240°C to 85°C) |
| UL Recognized | No |
| RoHS Compliant | Yes |
| CE Certified | Yes |
