Technical reference

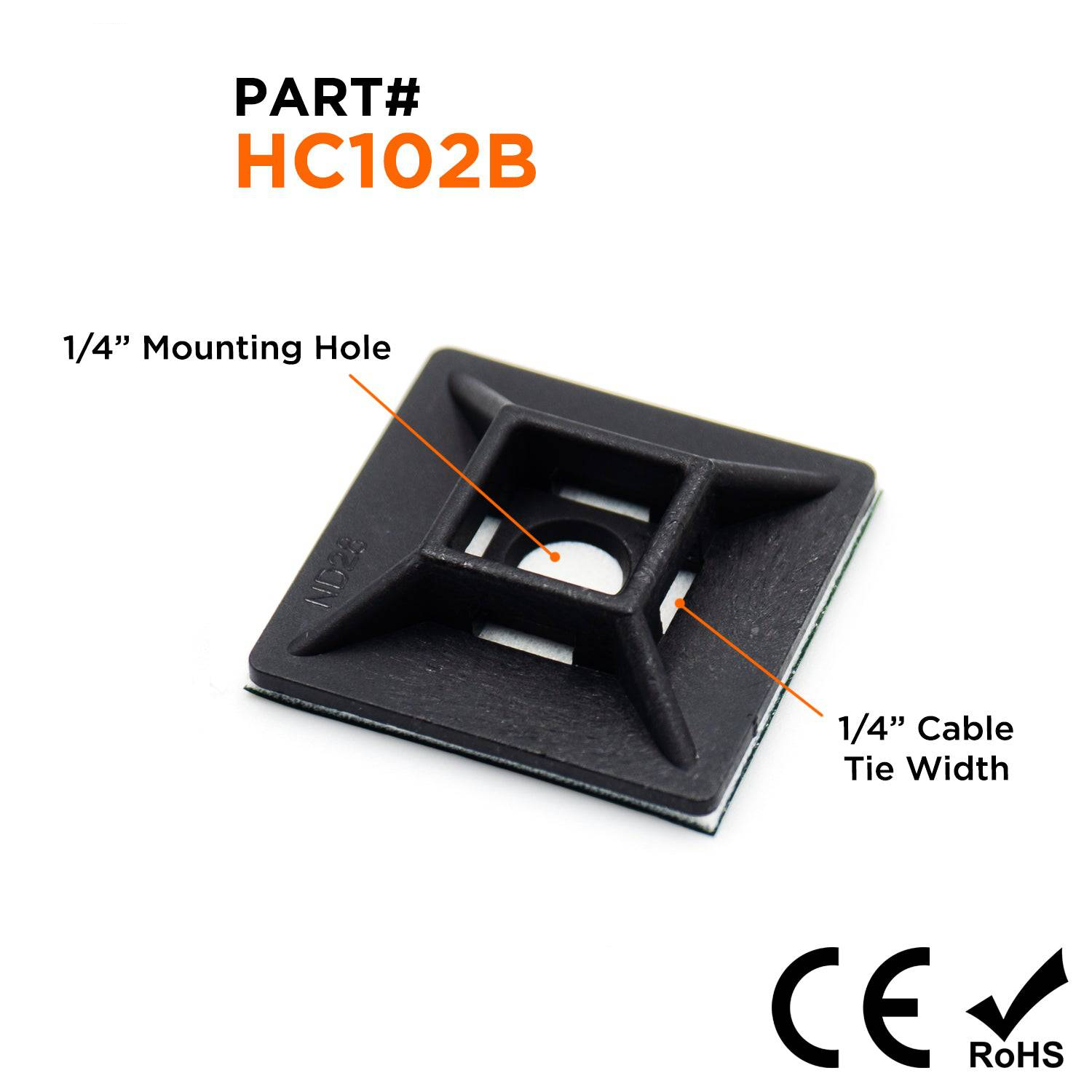

Procurement reference model: HC102B. Nominal Dimensions: 1-1/8"L x 1-1/8"W x 1/4"H; Color: Black; L: 28.0mm (1.1"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Nominal Dimensions | 1-1/8"L x 1-1/8"W x 1/4"H |
| Color | Black |
| L | 28.0mm (1.1") |
| W | 28.0mm (1.1") |
| H | 6.4mm (0.25") |
| Adhesive Thickness | 0.8mm (0.03") |
| T (Cable Tie Slot Width) | 5.8mm (0.23") |
| Mounting Hole Size | 6.0mm (0.24") |
| Material | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature | -40°F to 185°F (-40°C to 85°C) |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |

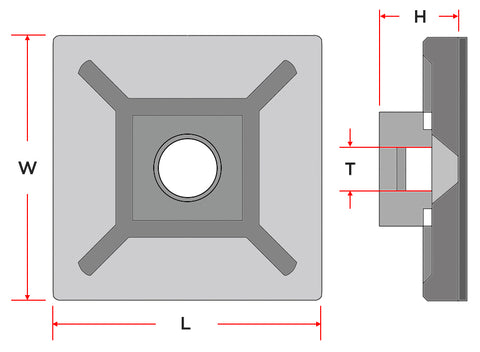

Drawings and product details
