Technical reference

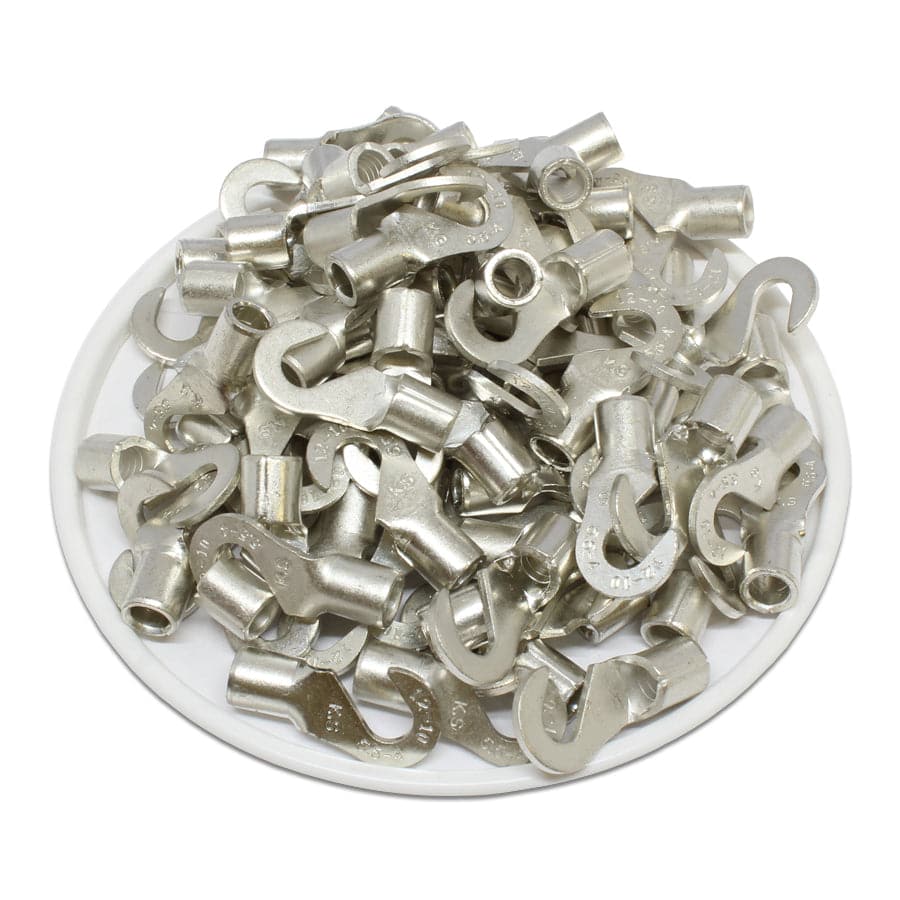

Procurement reference model: HNB5-4. Wire Range: 12-10 AWG; T: 0.03" (1.00mm); L: 0.88" (19.8mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 12-10 AWG |
| T | 0.03" (1.00mm) |
| L | 0.88" (19.8mm) |
| F | 0.37" (9.5mm) |
| E | 0.23" (6.0mm) |
| W | 0.37" (9.5mm) |
| D | 0.22" (5.6mm) |
| D1 | 0.13" (3.4mm) |
| D2 | 0.16" (4.3mm) |
| Terminal Material | Tin-Plated Copper |

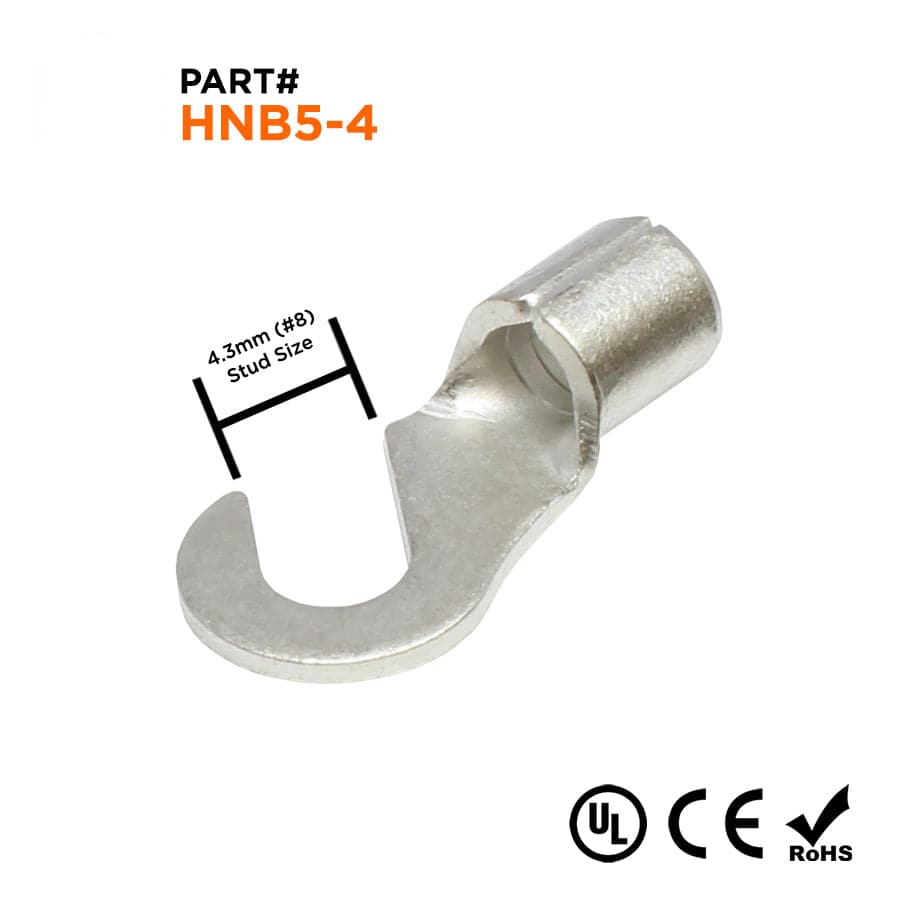

| Stud Size | #8 Stud |
| Seam | Brazed |
| Temperature Rating | 105 o C - 600 Volts |
| AMP Rating | 9-17AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
