Technical reference

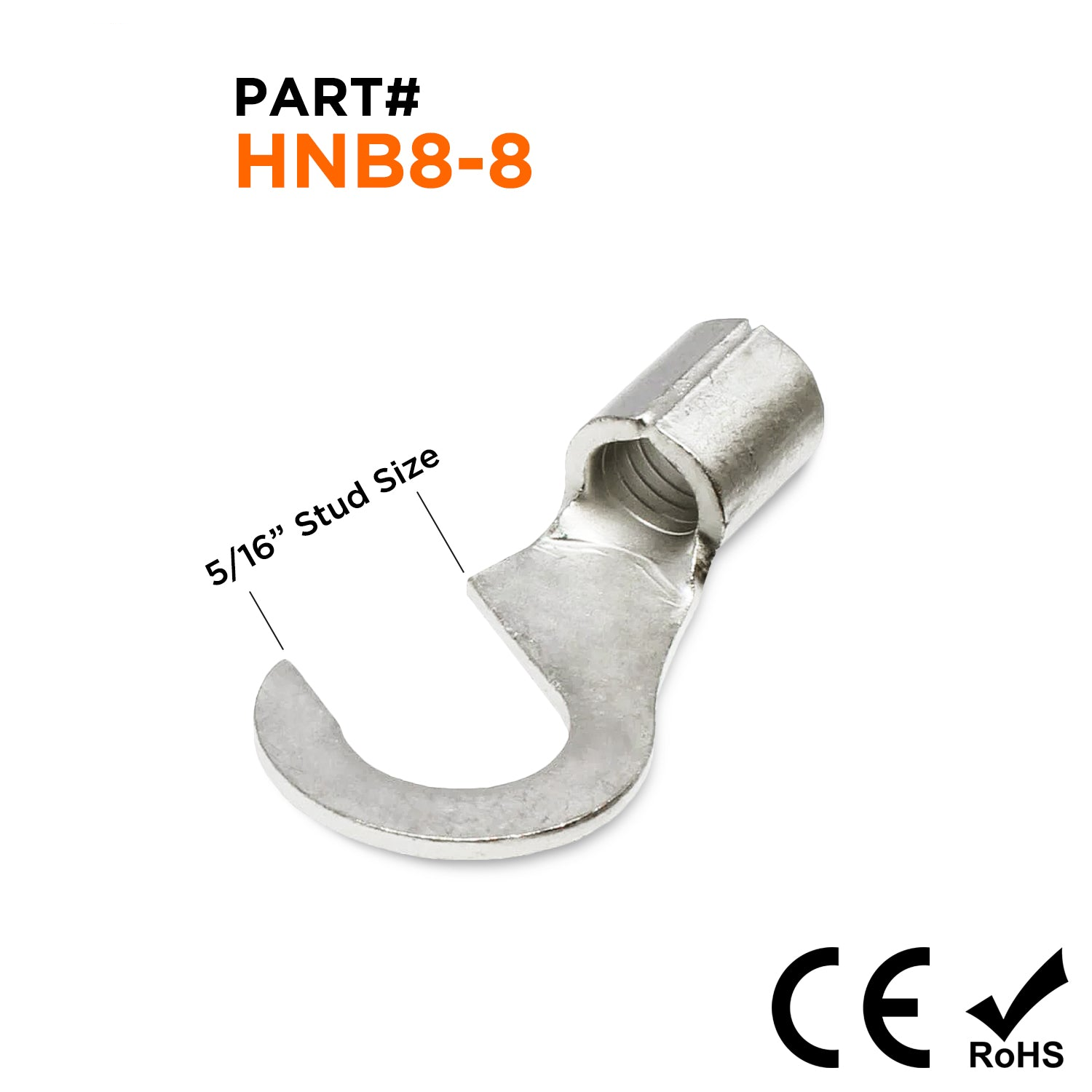

Procurement reference model: HNB8-8. Wire Range: 8 AWG; T: 0.047" (1.2mm); L: 1.161" (29.5mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range | 8 AWG |
| T | 0.047" (1.2mm) |
| L | 1.161" (29.5mm) |
| F | 0.543" (13.8mm) |
| E | 0.335" (8.5mm) |
| W | 0.591" (15.0mm) |
| D | 0.283" (7.2mm) |
| D1 | 0.177" (4.5mm) |
| D2 | 0.331" (8.4mm) |
| Terminal Material | Tin-Plated Copper |
| Stud Size | 5/16 Stud |
| Seam | Brazed |
| Temperature Rating | 105 o C - 600 Volts |
| AMP Rating | 70 AMP |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
