Technical reference

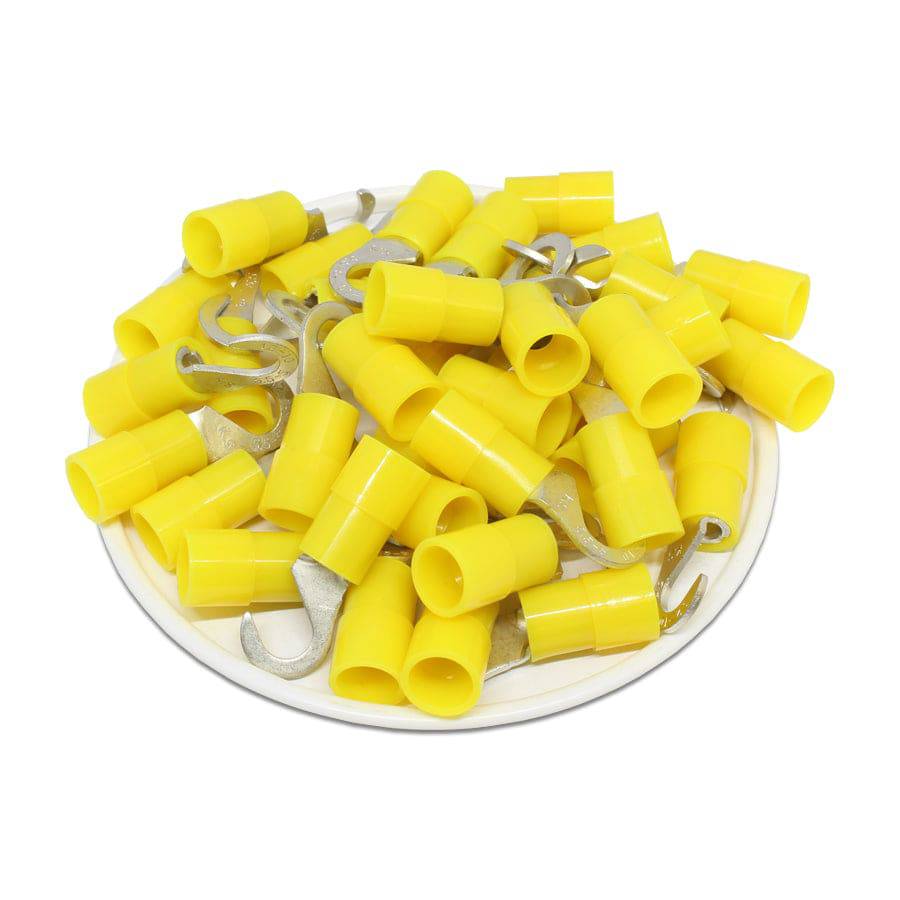

Procurement reference model: HNYB5-5. Wire Range: 12-10 AWG; T: 0.04" (1.0mm); L: 1.06" (26.8mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range | 12-10 AWG |
| T | 0.04" (1.0mm) |
| L | 1.06" (26.8mm) |
| F | 0.37" (9.5mm) |
| E | 0.51" (13.0mm) |
| W | 0.37" (9.5mm) |
| D | 0.25" (6.4mm) |
| D1 | 0.13" (3.4mm) |
| D2 | 0.21" (5.3mm) |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Stud Size | #10 Stud |
| Temperature Rating | 150 o C - 600 Volts |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Color | Yellow |
