Technical reference

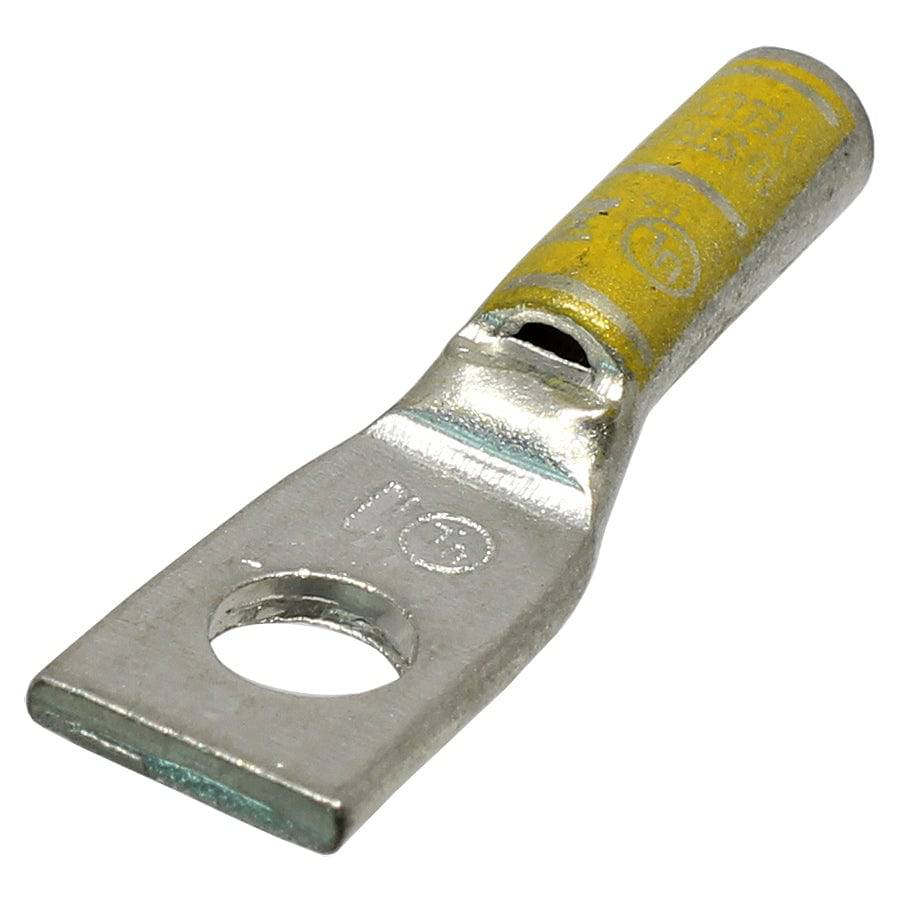

Procurement reference model: LB1014S. Wire Size: 10 AWG; Stud Size: 1/4"; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 10 AWG |
| Stud Size | 1/4" |
| Color | Yellow |
| L | 36.1mm (1.42") |
| L1 | 18.4mm (0.72") |
| D | 11.1mm (0.44") |
| D1 | 5.6mm (0.22") |
| D2 | 3.3mm (0.13") |
| B | 14.4mm (0.57") |
| E | 7.2mm (0.28") |
| F | 1.42mm (0.06") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 50A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
