Technical reference

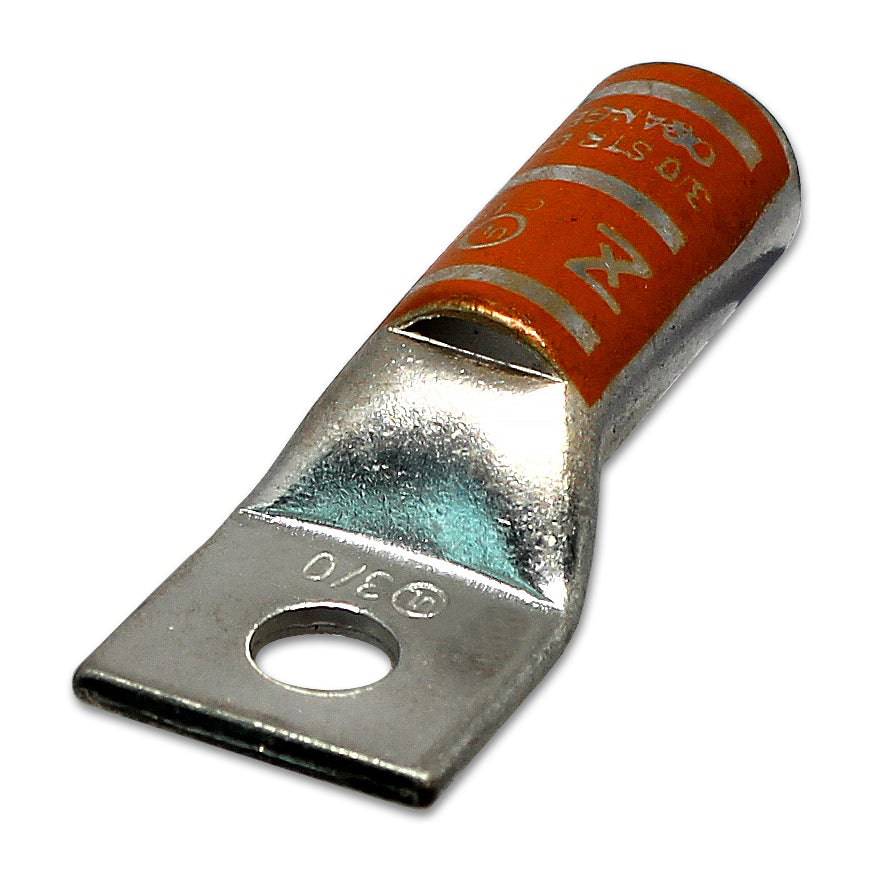

Procurement reference model: LB3014. Wire Size: 3/0 AWG; Stud Size: 1/4"; Color: Orange. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 3/0 AWG |
| Stud Size | 1/4" |
| Color | Orange |
| L | 57.7mm (2.27") |
| L1 | 18.4mm (0.72") |
| D | 22.9mm (0.90") |
| D1 | 15.7mm (0.62") |
| D2 | 12.9mm (0.51") |
| B | 30.4mm (1.20") |
| E | 7.1mm (0.28") |
| F | 2.7mm (0.10") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 310A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
