Technical reference

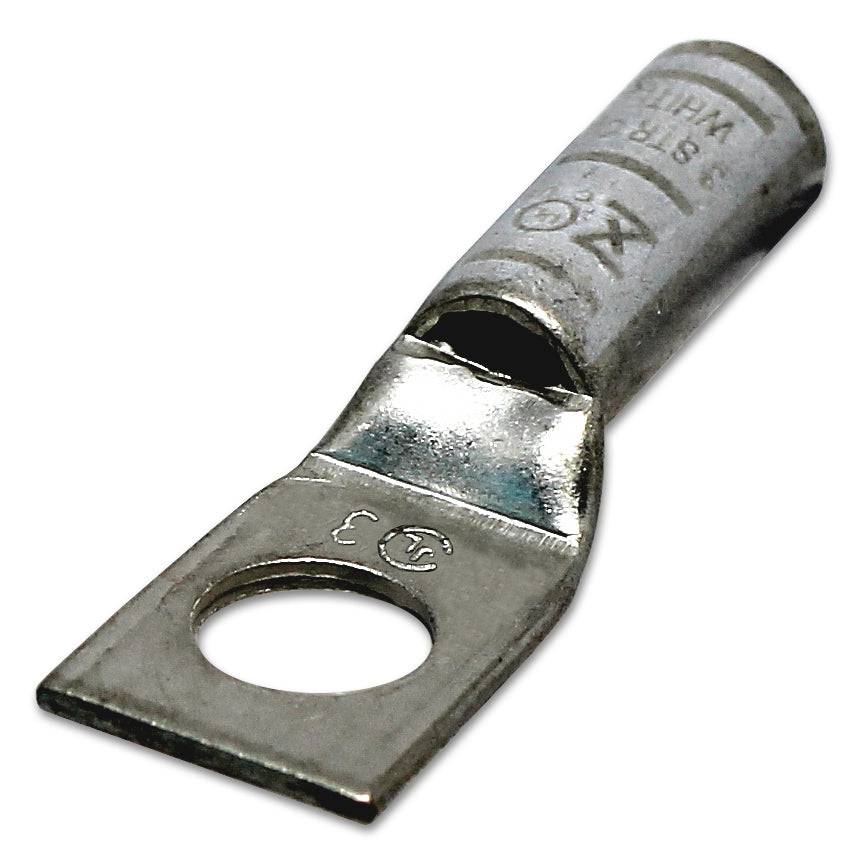

Procurement reference model: LB312. Wire Size: 3 AWG; Stud Size: 1/2"; Color: White. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 3 AWG |
| Stud Size | 1/2" |
| Color | White |
| L | 55.3mm (2.18") |
| L1 | 28.7mm (1.13") |
| D | 17.7mm (0.70") |
| D1 | 9.9mm (0.39") |
| D2 | 7.8mm (0.31") |
| B | 22.8mm (0.90") |
| E | 13.1mm (0.51") |
| F | 1.6mm (0.06") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 170A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
