Technical reference

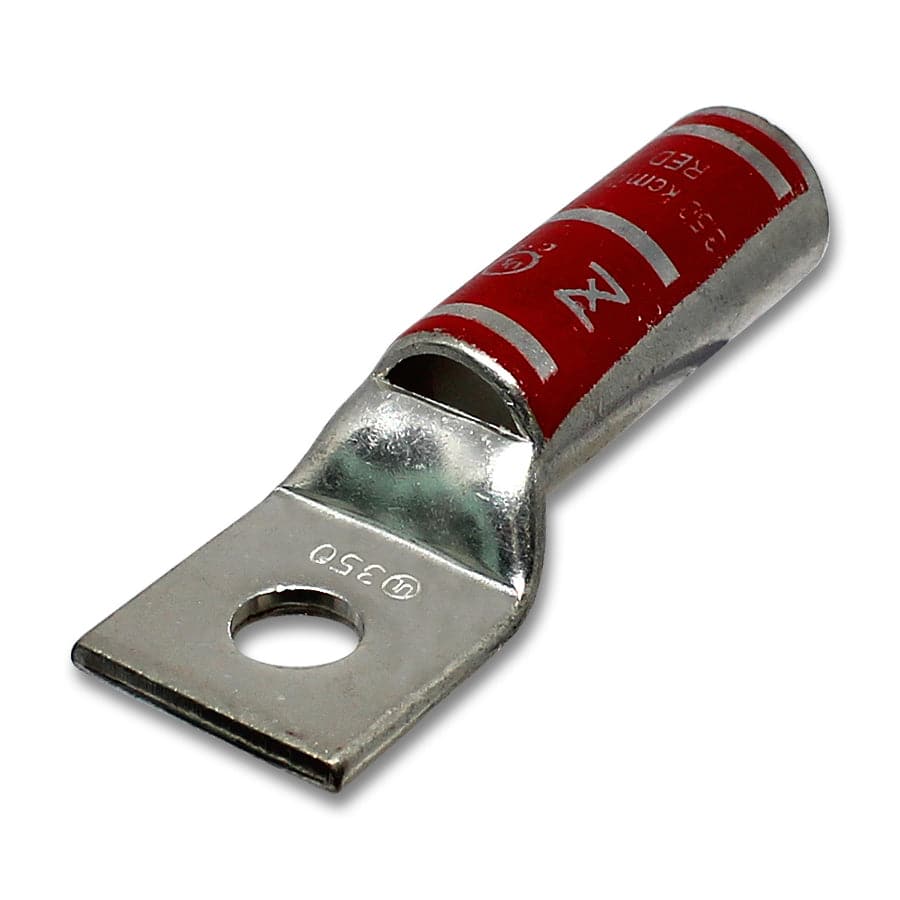

Procurement reference model: LB35012. Wire Size: 350MCM; Color: Red; L: 97.4mm (3.83"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 350MCM |
| Color | Red |
| L | 97.4mm (3.83") |
| L1 | 30.2mm (1.19") |
| D | 32.5mm (1.27") |
| D1 | 22.2mm (0.87") |
| D2 | 18.2mm (0.71") |
| B | 57.2mm (2.25") |
| E | 12.9mm (0.50") |
| F | 3.9mm (0.16") |
| Terminal Material | Tin-Plated Copper |
| Stud Size | 1/2" |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Maximum Amp Ordering | 505A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
