Technical reference

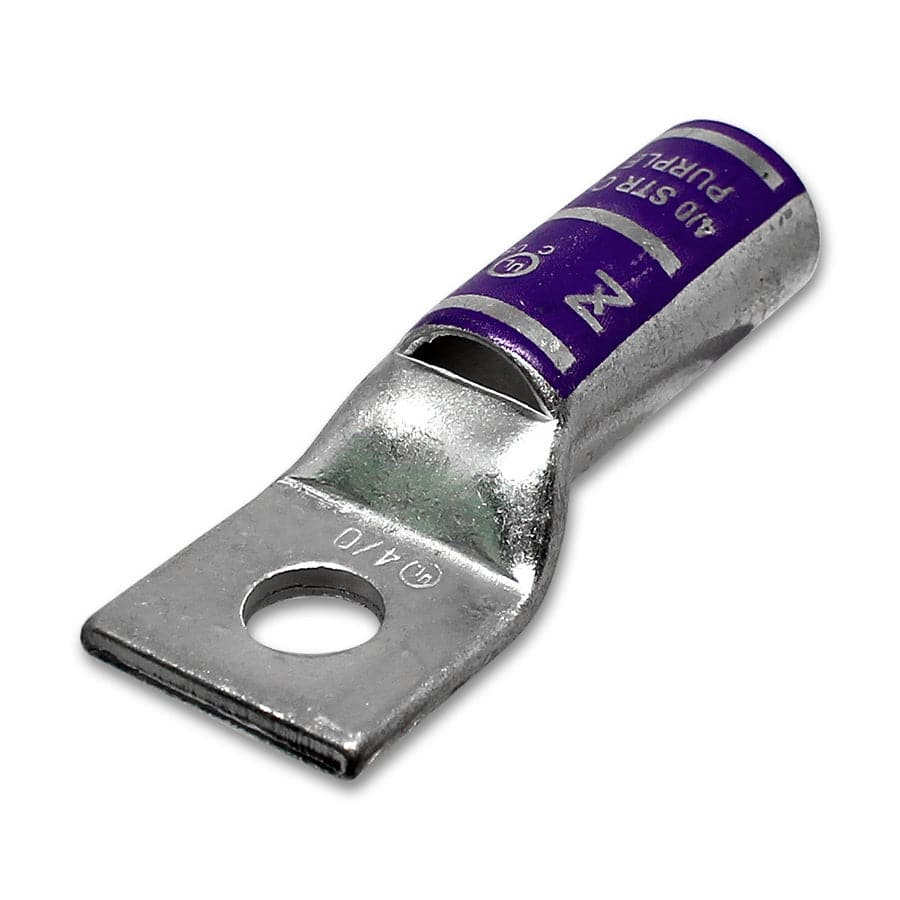

Procurement reference model: LB4014. Wire Size: 4/0 AWG; Stud Size: 1/4"; Color: Purple. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 4/0 AWG |
| Stud Size | 1/4" |
| Color | Purple |
| L | 64.5mm (2.54") |
| L1 | 18.4mm (0.72") |
| D | 25.4mm (1.00") |
| D1 | 17.3mm (0.68") |
| D2 | 14.2mm (0.56") |
| B | 37.2mm (1.40") |
| E | 7.1mm (0.28") |
| F | 3.0mm (0.12") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 230A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
