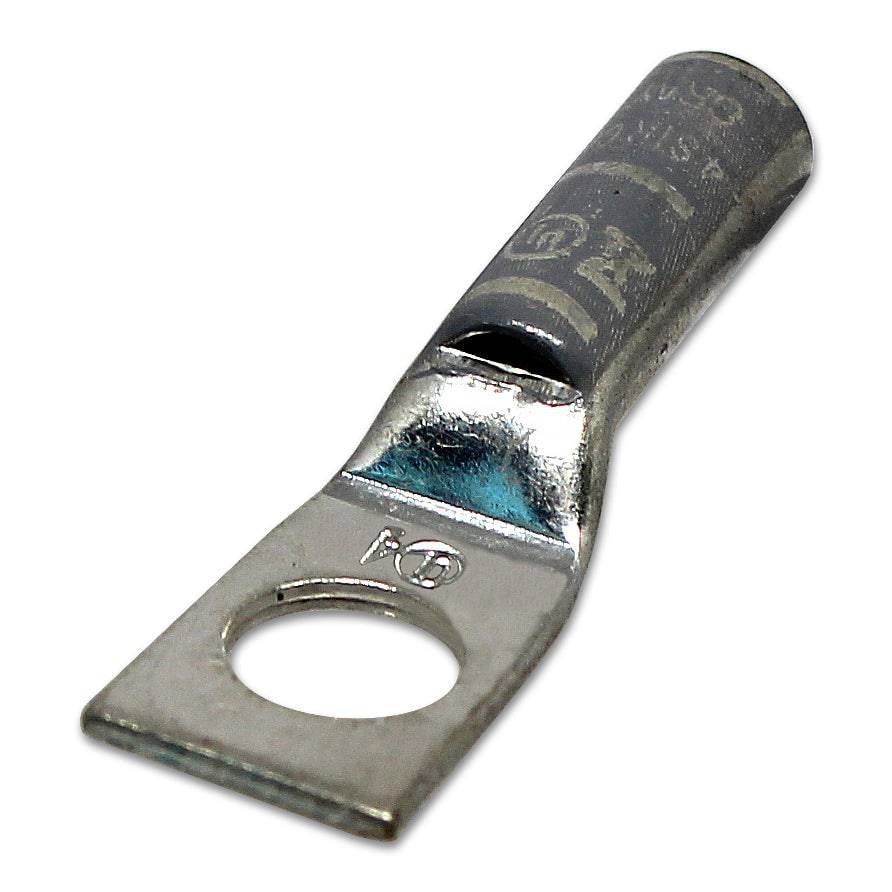

Procurement reference model: LB414. Wire Size: 4 AWG; Stud Size: 1/4"; Color: Gray. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 4 AWG |
| Stud Size | 1/4" |
| Color | Gray |
| L | 45.1mm (1.77") |
| L1 | 18.4mm (0.72") |
| D | 13.7mm (0.54") |
| D1 | 9.1mm (0.36") |
| D2 | 7.1mm (0.28") |
| B | 22.8mm (0.90") |
| E | 7.1mm (0.28") |
| F | 1.8mm (0.07") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 125A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
