Technical reference

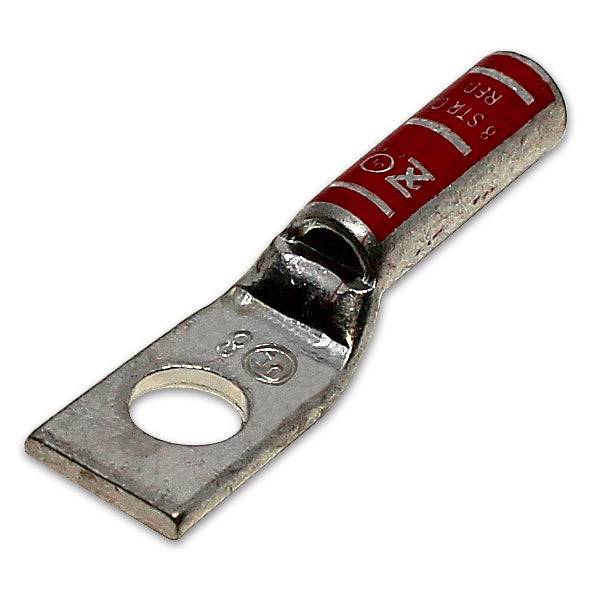

Procurement reference model: LB814. Wire Size: 8 AWG; Stud Size: 1/4"; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 8 AWG |
| Stud Size | 1/4" |
| Color | Red |
| L | 42.1mm (1.66") |
| L1 | 18.4mm (0.72") |
| D | 11.1mm (0.44") |
| D1 | 7.1mm (0.28") |
| D2 | 4.8mm (0.19") |
| B | 20.5mm (0.81") |
| E | 7.1mm (0.28") |
| F | 1.9mm (0.07") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 50A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
