Technical reference

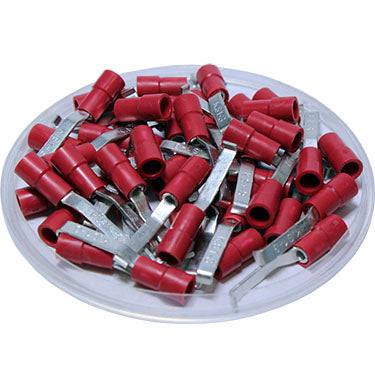

Procurement reference model: LBD1-46. Wire Size: 22-16 AWG; Color: Red; T: 0.8mm (0.03"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 22-16 AWG |
| Color | Red |
| T | 0.8mm (0.03") |
| L | 27.7mm (1.09") |
| F | 17.4mm (0.69") |
| E | 10.5mm (0.41") |
| W | 4.6mm (0.18") |
| A | 2.1mm (0.08") |
| D | 4.2mm (0.17") |
| D1 | 1.7mm (0.07") |
| Material | Tin Plated Copper |
| Insulation | Vinyl |
| Electrical Rating | 105°C - 600 Volts |
| Electrical Current | 18 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
