Technical reference

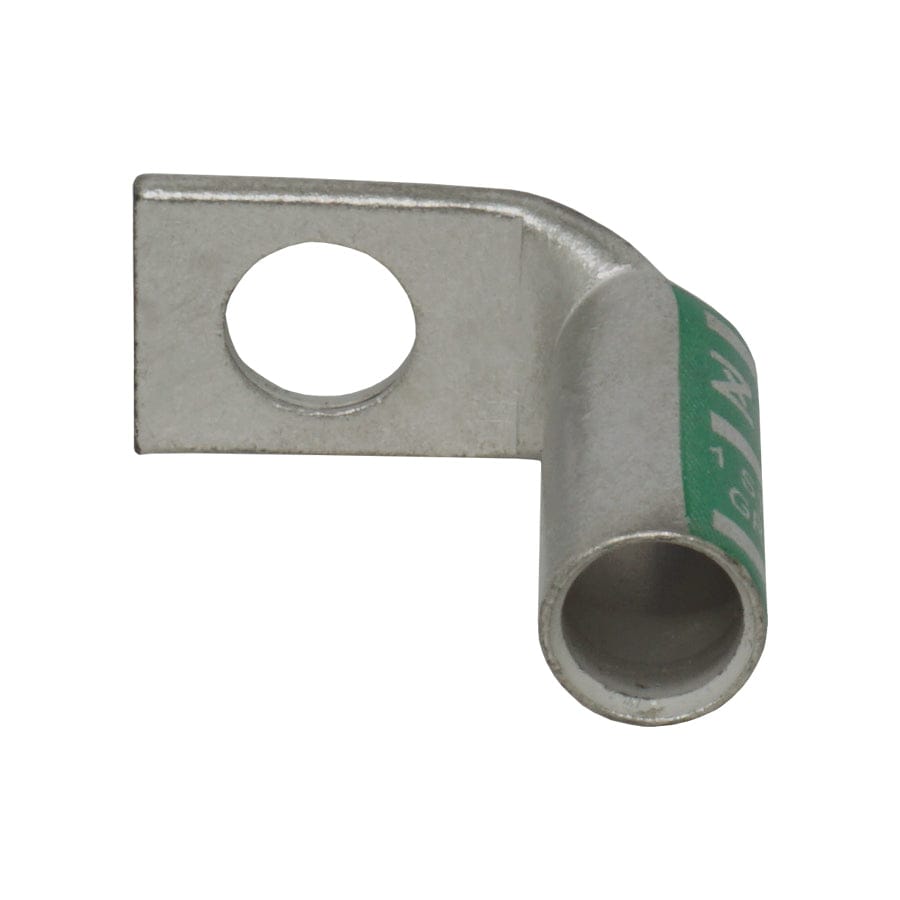

Procurement reference model: LBF138. Wire Size: 1 AWG; Stud Size: 3/8" Stud; Color: Green. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 1 AWG |
| Stud Size | 3/8" Stud |
| Color | Green |
| A | 11.7mm (0.46") |
| B | 28.7mm (1.13") |
| C | 9.1mm (0.36") |
| D | 16.8mm (0.66") |
| E | 10.4mm (0.41") |
| G | 10.2mm (0.40") |
| Material | Tin Plated Copper |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| UL Approved | Yes |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 130A |
Drawings and product details
