Technical reference

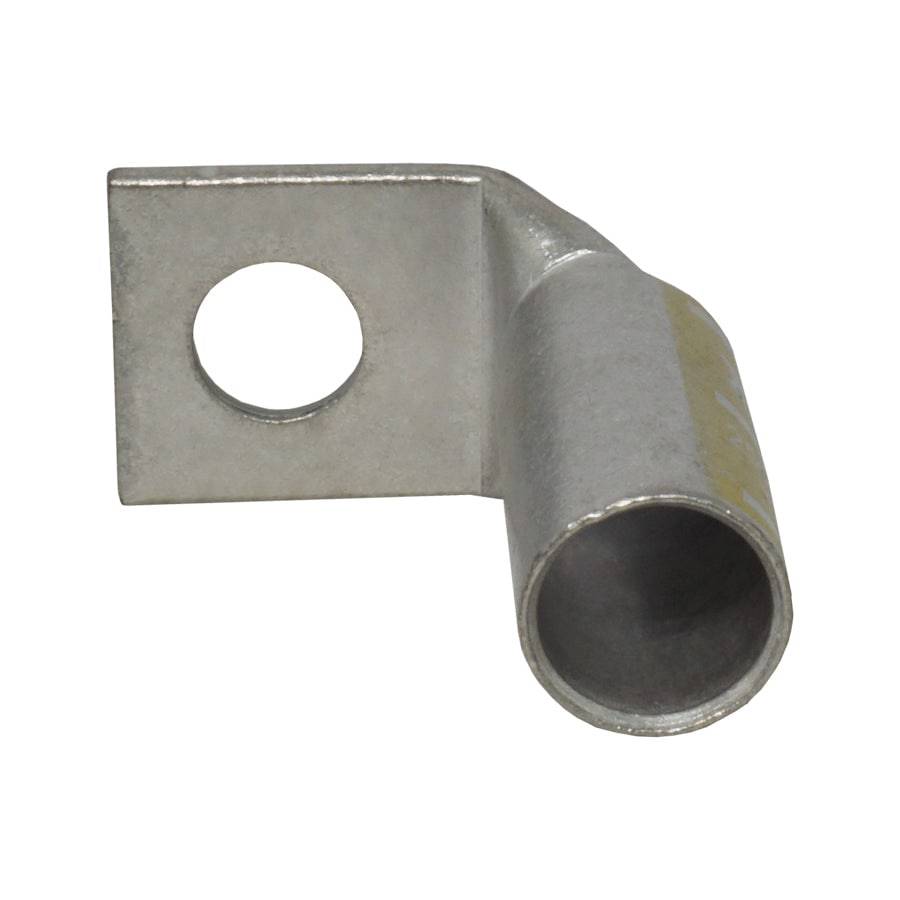

Procurement reference model: LBF25012. Wire Size: 250MCM; Stud Size: 1/2" Stud; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 250MCM |
| Stud Size | 1/2" Stud |
| Color | Yellow |
| A | 19.1mm (0.75") |
| B | 40.1mm (1.58") |
| C | 16.0mm (0.63") |
| D | 27.9mm (1.10") |
| E | 13.2mm (0.52") |
| G | 12.7mm (0.50") |
| Material | Tin Plated Copper |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| UL Approved | Yes |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 255A |
