Technical reference

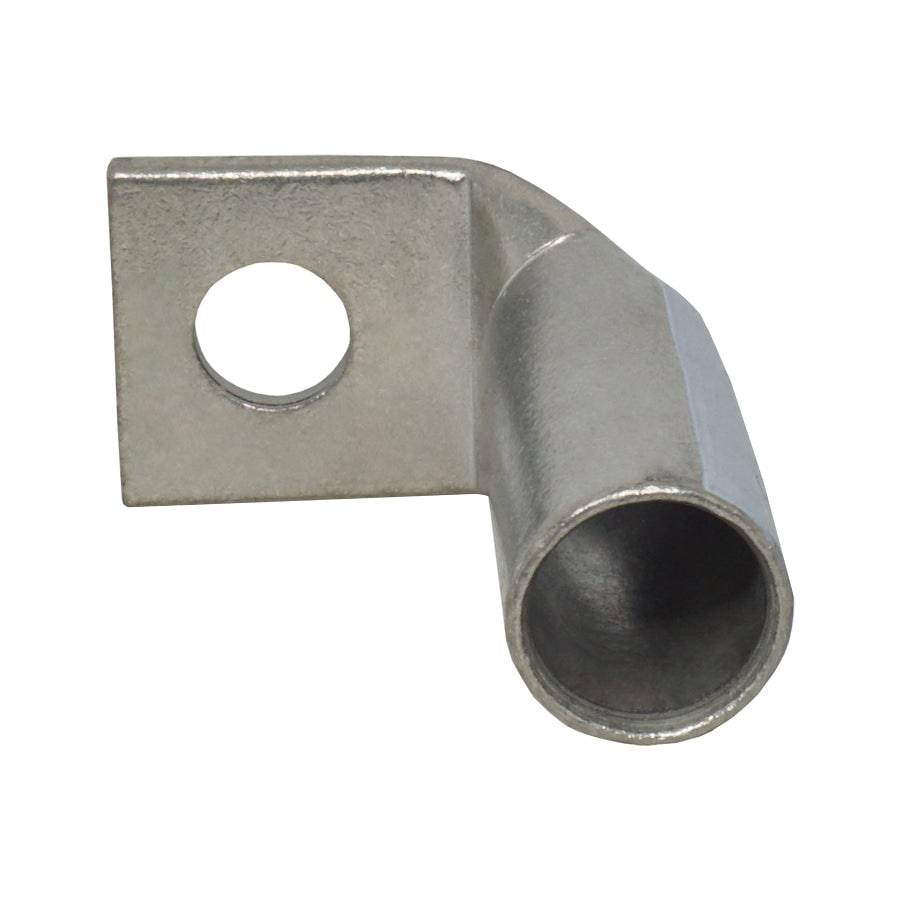

Procurement reference model: LBF30012. Wire Size: 300MCM; Stud Size: 1/2" Stud; Color: White. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 300MCM |
| Stud Size | 1/2" Stud |
| Color | White |
| A | 21.1mm (0.83") |
| B | 48.3mm (1.90") |
| C | 17.3mm (0.68") |
| D | 30.2mm (1.19") |
| E | 13.0mm (0.51") |
| G | 13.5mm (0.53") |
| Material | Tin Plated Copper |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| UL Approved | Yes |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 285A |
Drawings and product details
