Technical reference

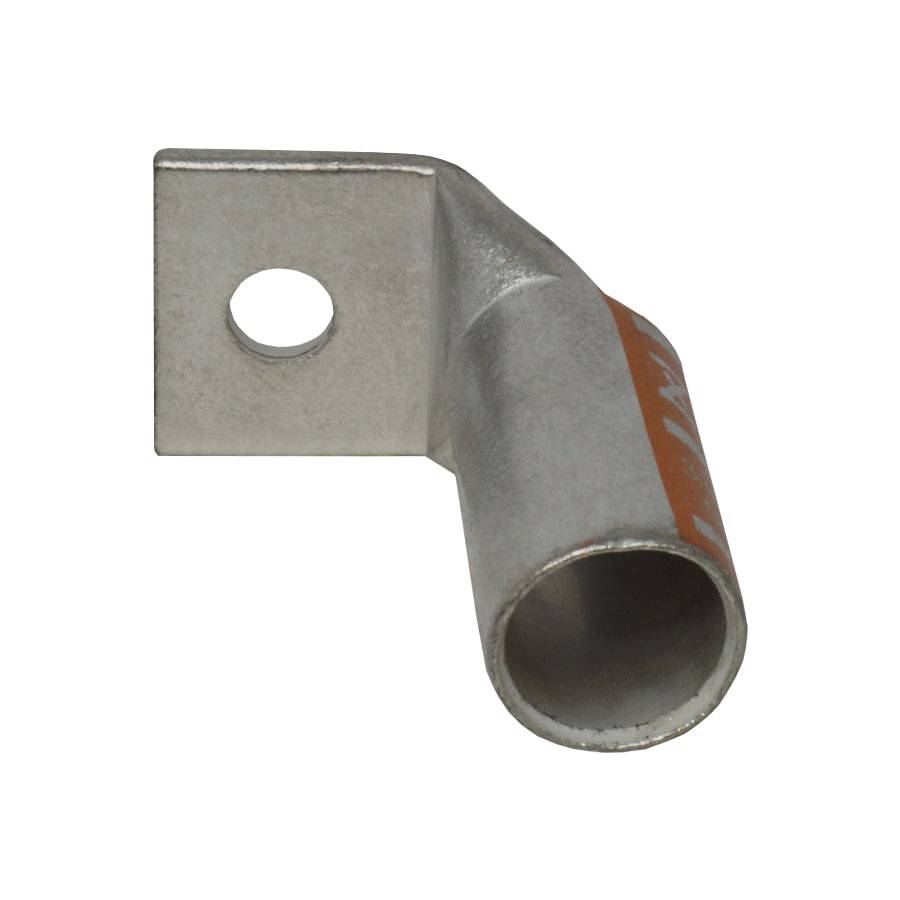

Procurement reference model: LBF3014. Wire Size: 3/0 AWG; Stud Size: 1/4" Stud; Color: Orange. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 3/0 AWG |
| Stud Size | 1/4" Stud |
| Color | Orange |
| A | 15.7mm (0.62") |
| B | 30.5mm (1.20") |
| C | 13.0mm (0.51") |
| D | 23.1mm (0.91") |
| E | 7.1mm (0.28") |
| G | 8.4mm (0.33") |
| Material | Tin Plated Copper |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| UL Approved | Yes |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 310A |
Drawings and product details
