Technical reference

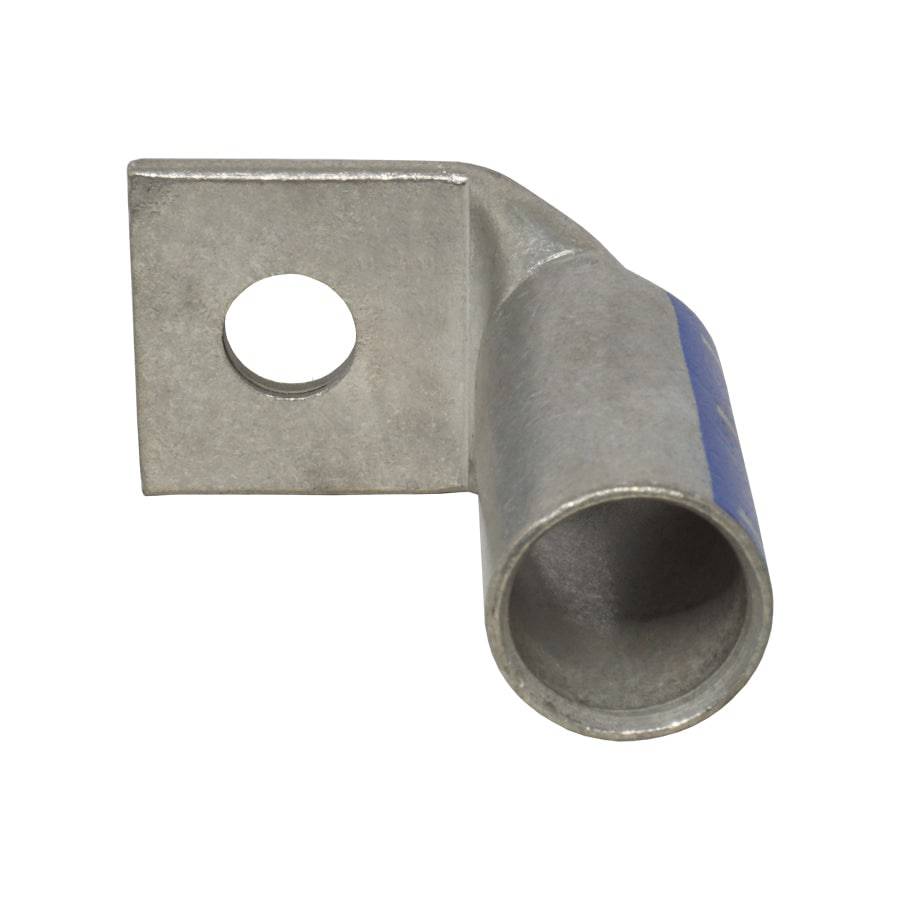

Procurement reference model: LBF40012. Wire Size: 400MCM; Stud Size: 1/2" Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 400MCM |
| Stud Size | 1/2" Stud |
| Color | Blue |
| A | 24.1mm (0.95") |
| B | 50.8mm (2.0") |
| C | 19.8mm (0.78") |
| D | 35.3mm (1.39") |
| E | 13.0mm (0.51") |
| G | 15.2mm (0.60") |
| Material | Tin Plated Copper |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| UL Approved | Yes |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 335A |
Drawings and product details
