Technical reference

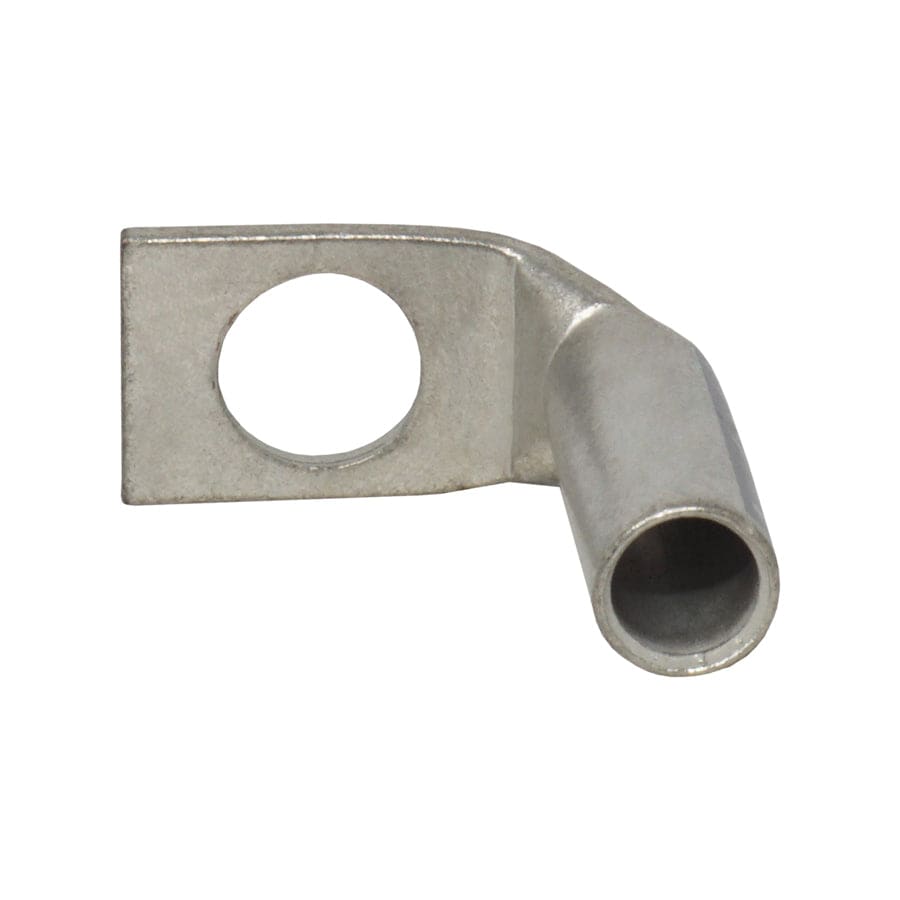

Procurement reference model: LBF438. Wire Size: 4 AWG; Stud Size: 3/8" Stud; Color: Gray. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 4 AWG |
| Stud Size | 3/8" Stud |
| Color | Gray |
| A | 9.1mm (0.36") |
| B | 22.9mm (0.90") |
| C | 7.1mm (0.28") |
| D | 15.2mm (0.60") |
| E | 10.4mm (0.41") |
| G | 10.2mm (0.40") |
| Material | Tin Plated Copper |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| UL Approved | Yes |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 85A |
Drawings and product details
