Technical reference

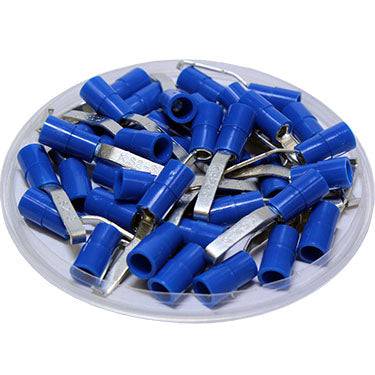

Procurement reference model: LBNYB2-46. Wire Size: 16-14 AWG; Color: Blue; T: 0.8mm (0.03"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |
| T | 0.8mm (0.03") |
| L | 28.2mm (1.11") |
| F | 17.4mm (0.69") |
| E | 11mm (0.43") |
| W | 4.6mm (0.18") |
| A | 2.1mm (0.08") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.09") |
| Material | Tin Plated Copper |
| Insulation | Nylon |
| Electrical Rating | 105°C - 600 Volts |
| Electrical Current | 30 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
