Technical reference

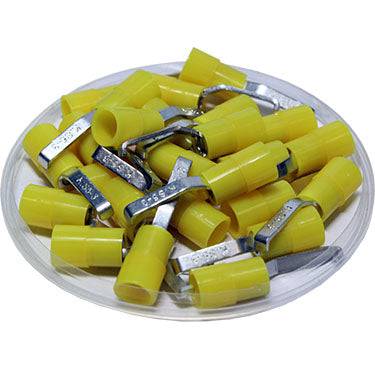

Procurement reference model: LBNYD5-3. Wire Size: 12-10 AWG; Color: Yellow; T: 1.0mm (0.04"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 12-10 AWG |
| Color | Yellow |
| T | 1.0mm (0.04") |
| L | 30.2mm (1.19") |
| F | 17.2mm (0.68") |
| E | 13mm (0.51") |
| W | 3.0mm (0.12") |
| A | 2.8mm (0.11") |
| D | 7.0mm (0.28") |
| D1 | 3.4mm (0.13") |
| Material | Tin Plated Copper |
| Insulation | Nylon |
| Electrical Rating | 105°C - 600 Volts |
| Electrical Current | 50 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
