Technical reference

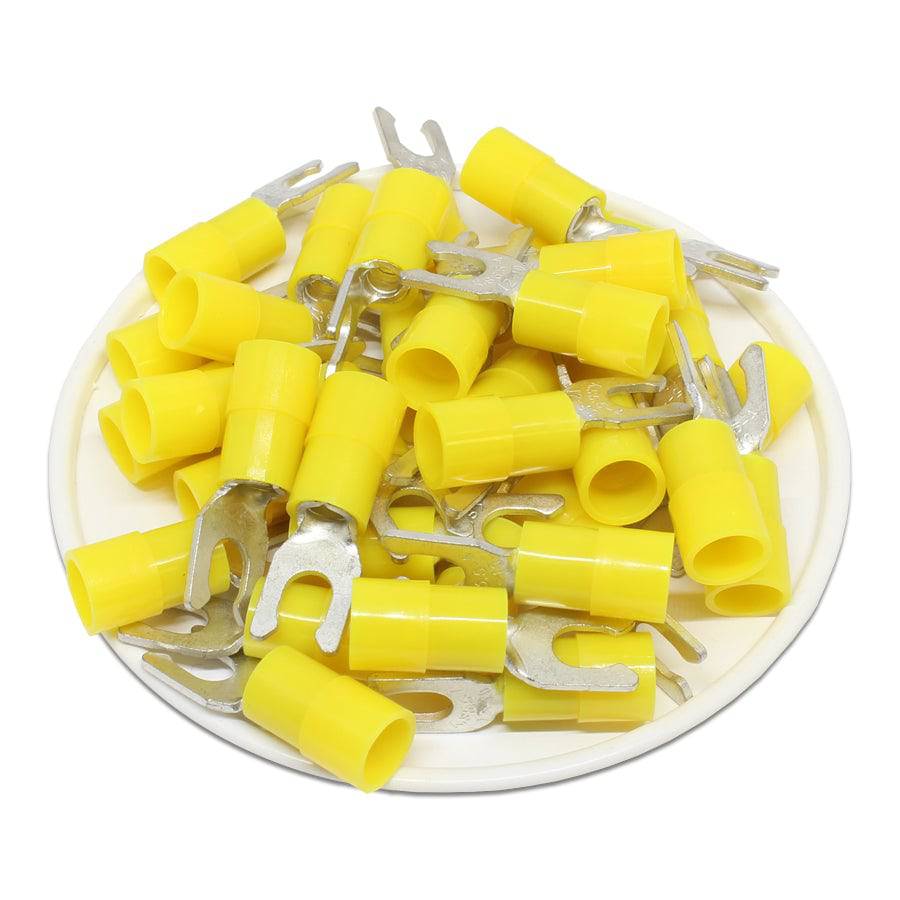

Procurement reference model: LSNYB5-4. Wire Size: 12-10 AWG; Seam: Brazed; Stud Size: #8. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 12-10 AWG |
| Seam | Brazed |
| Stud Size | #8 |
| Terminal Material | Tin-Plated Copper |
| Max Electrical Temperature | 105 °C |
| Max Electrical Current | 50AMP |
| T | 1.0mm (0.04") |
| L | 25.2mm (0.99") |
| F | 7.0mm (0.28") |
| E | 13.0mm (0.51") |
| W | 8.3mm (0.33") |
| D | 6.4mm (0.25") |
| D1 | 3.4mm (0.13") |
| D2 | 4.3mm (0.17") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
