Technical reference

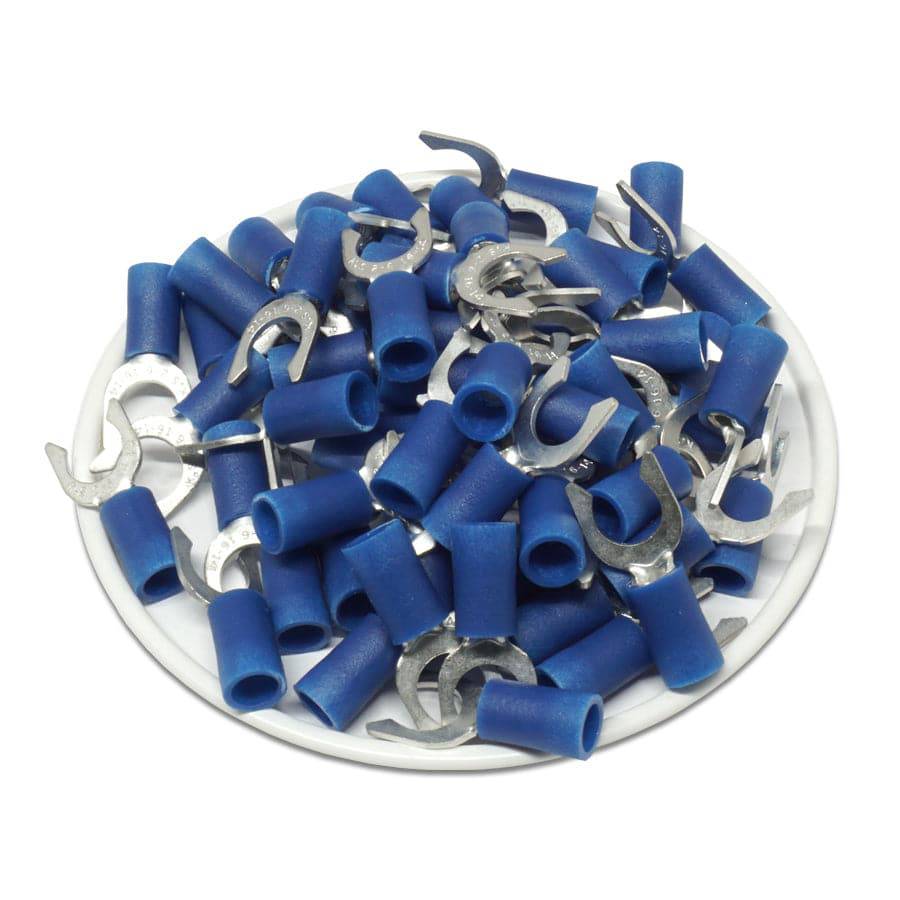

Procurement reference model: LSVB2-6. Wire Size: 16-14 AWG; Stud Size: 1/4" Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Size | 1/4" Stud |
| Color | Blue |
| W | 9.3mm (0.36") |
| F | 7.2mm (0.28") |
| L | 21mm (0.83") |
| E | 10mm (0.40") |
| D | 4.5mm (0.17") |
| D1 | 2.3mm (0.09") |
| D2 | 6.4mm (0.25") |
| T | 0.8mm (0.03") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Rating | 600 Volts (105 o C) |
| Max Electrical Current | 30AMP |
| Seam | Brazed |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
