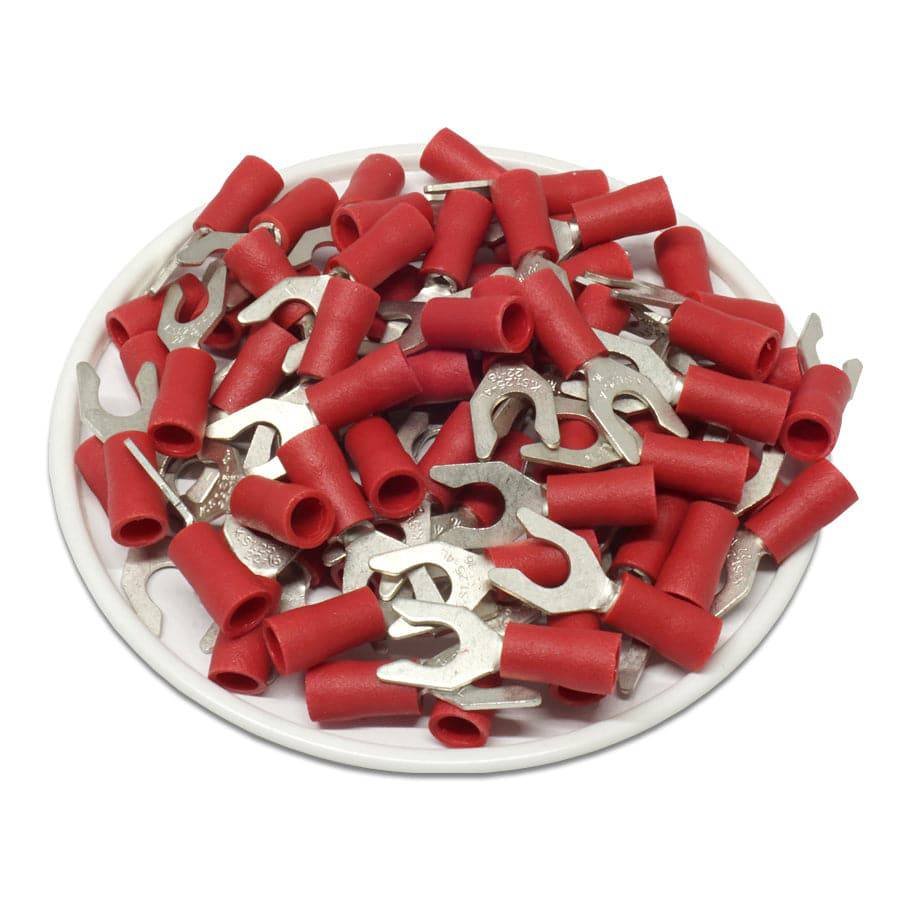

Procurement reference model: LSVBL1-5. Wire Size: 22-16 AWG; Stud Size: #10; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | #10 |
| Color | Red |
| W | 9.5mm (0.36") |
| F | 6.5mm (0.26") |
| L | 21mm (0.83") |
| E | 10mm (0.39") |
| D | 4mm (0.16") |
| D1 | 1.7mm (0.06") |
| D2 | 5.3mm (0.21") |
| T | 0.75mm (0.03") |
| Seam | Brazed |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Rating | 600 Volts (105°C) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
