Technical reference

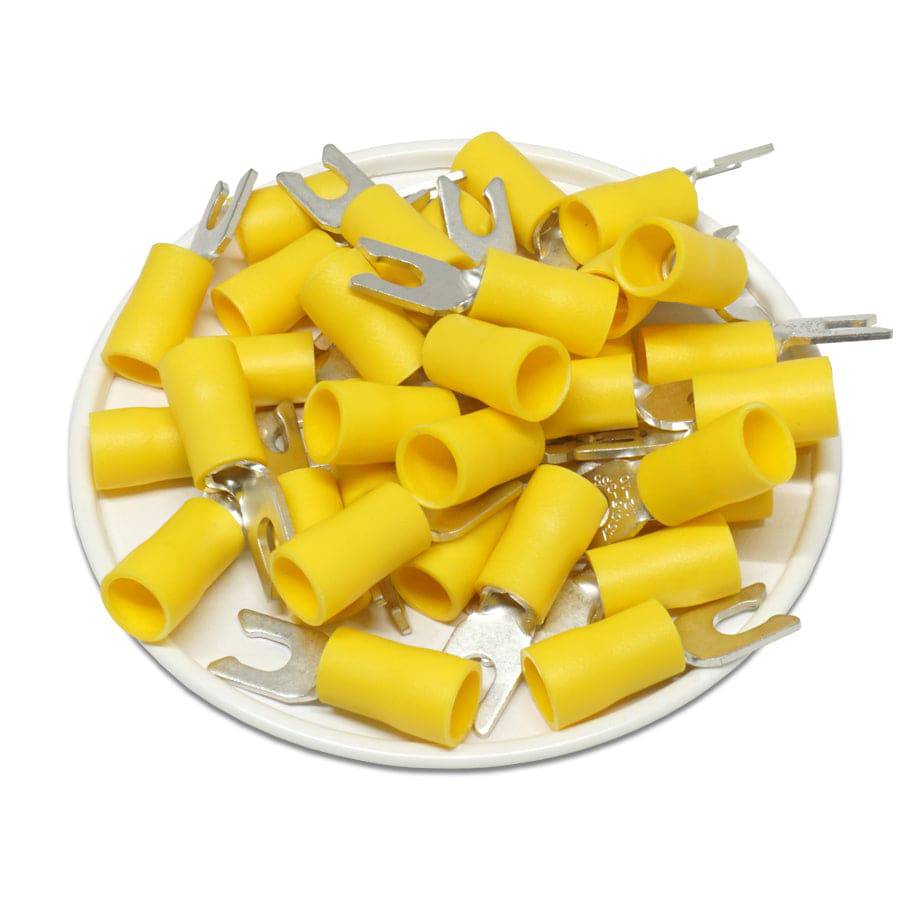

Procurement reference model: LSVBS5-37. Wire Size: 12-10 AWG; Stud Size: #4 Stud; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Stud Size | #4 Stud |
| Color | Yellow |
| W | 8.1mm (0.32") |
| F | 6.5mm (0.25") |
| L | 12mm (0.82") |
| E | 13mm (1.24") |
| D | 6.4mm (0.51") |
| D1 | 3.2mm (0.25") |
| D2 | 3.7mm (0.13") |
| T | 1mm (0.08") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Rating | 600 Volts (105 o C) |
| Max Electrical Current | 50AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
