Technical reference

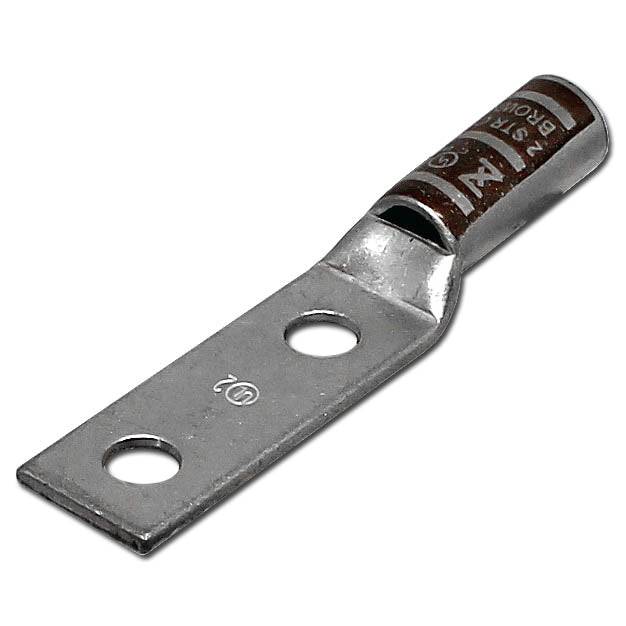

Procurement reference model: LT214B. Wire Size: 2 AWG; Stud Size: 1/4" Stud; Color: Brown. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 2 AWG |
| Stud Size | 1/4" Stud |
| Color | Brown |
| L | 71mm (2.80") |
| L1 | 41.9mm (1.70") |
| L2 | 25.4mm (1.00") |
| D | 15.9mm (0.63") |
| D1 | 10.8mm (0.43") |
| D2 | 8.5mm (0.34") |
| B | 24.5mm (0.97") |
| E | 7.1mm (0.28") |
| F | 2.2mm (0.09") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Max Amp Rating | 170A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
