Technical reference

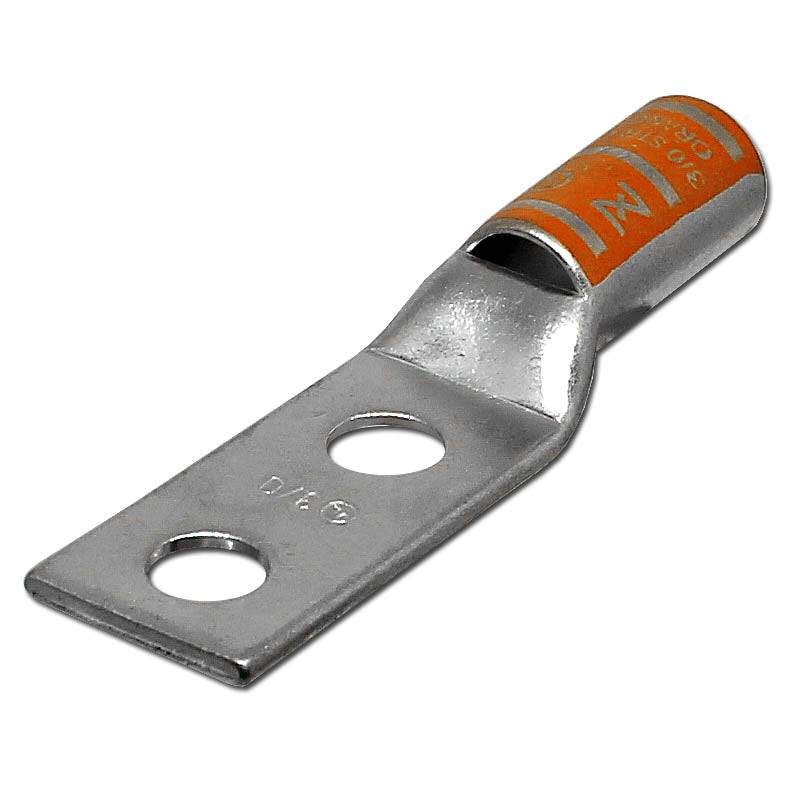

Procurement reference model: LT3038. Wire Size: 3/0 AWG; Stud Size: 3/8"; Color: Orange. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 3/0 AWG |
| Stud Size | 3/8" |
| Color | Orange |
| L | 80.0mm (3.13") |
| L1 | 40.1mm (1.58") |
| L2 | 19.1mm (0.75") |
| D | 23.0mm (0.91") |
| D1 | 15.7mm (0.62") |
| D2 | 13.0mm (0.51") |
| B | 30.5mm 1.20") |
| E | 10.4mm (0.41) |
| F | 2.7mm (0.11") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 310A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
