Technical reference

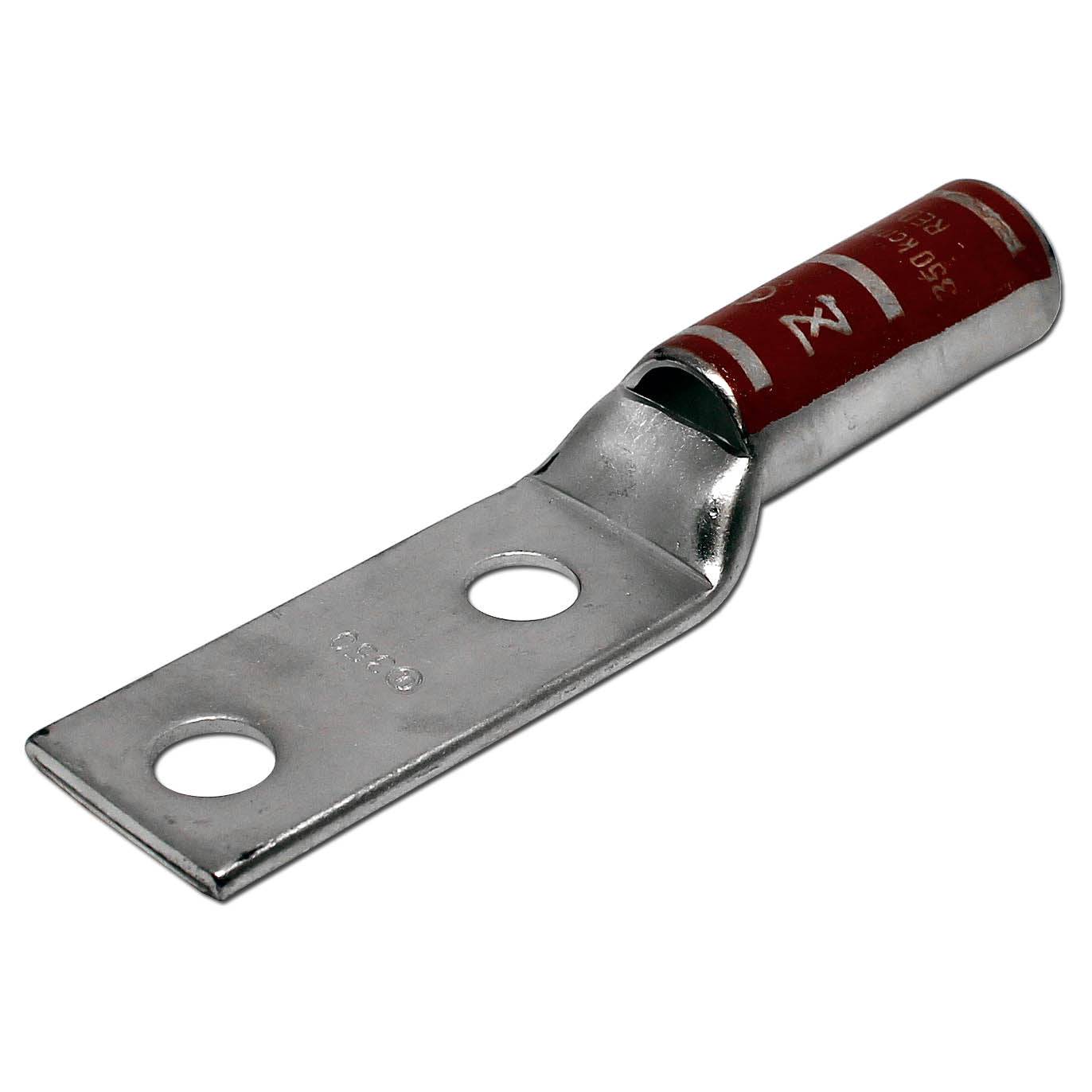

Procurement reference model: LT35012. Wire Size: 350MCM; Stud Size: 1/2"; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 350MCM |
| Stud Size | 1/2" |
| Color | Red |
| L | 138.4mm (5.45") |
| L1 | 72.4mm (2.85") |
| L2 | 44.5mm (1.75") |
| D | 32.5mm (1.28") |
| D1 | 22.3mm (0.88") |
| D2 | 18.3mm (0.72") |
| B | 55.9mm (2.20") |
| E | 13.0mm (0.51") |
| F | 4.0mm (0.16") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Max Amp Rating | 310A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
