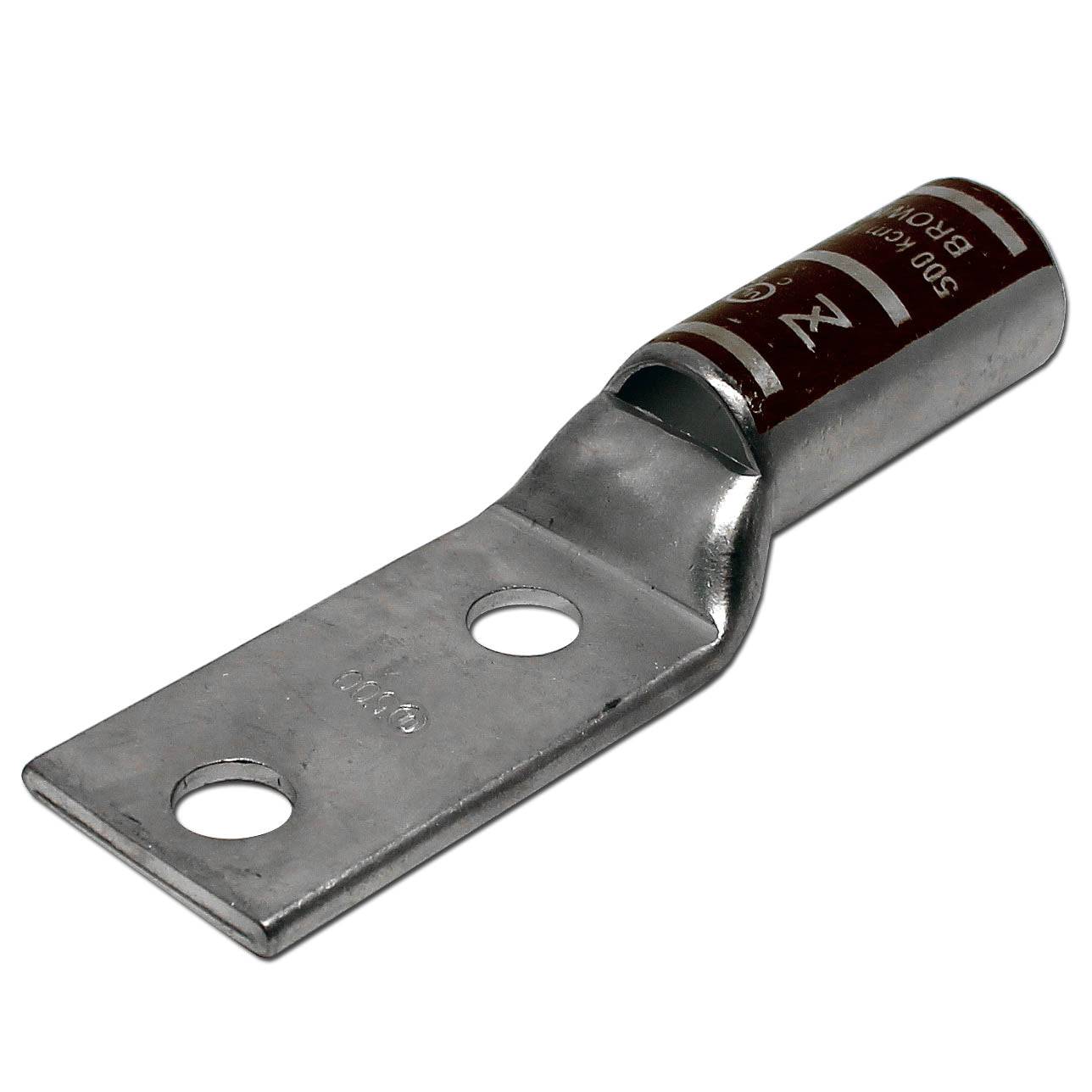

Procurement reference model: LT50012. Wire Size: 500MCM; Stud Size: 1/2"; Color: Brown. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 500MCM |
| Stud Size | 1/2" |
| Color | Brown |
| L | 141.0mm (5.55") |
| L1 | 72.4mm (2.85") |
| L2 | 44.8mm (1.75") |
| D | 39.1mm (1.54") |
| D1 | 26.5mm (1.06") |
| D2 | 21.8mm (0.86") |
| B | 55.9mm (2.20") |
| E | 13.0mm (0.51") |
| F | 5.0mm (0.20") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Max Amp Rating | 620A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
