Technical reference

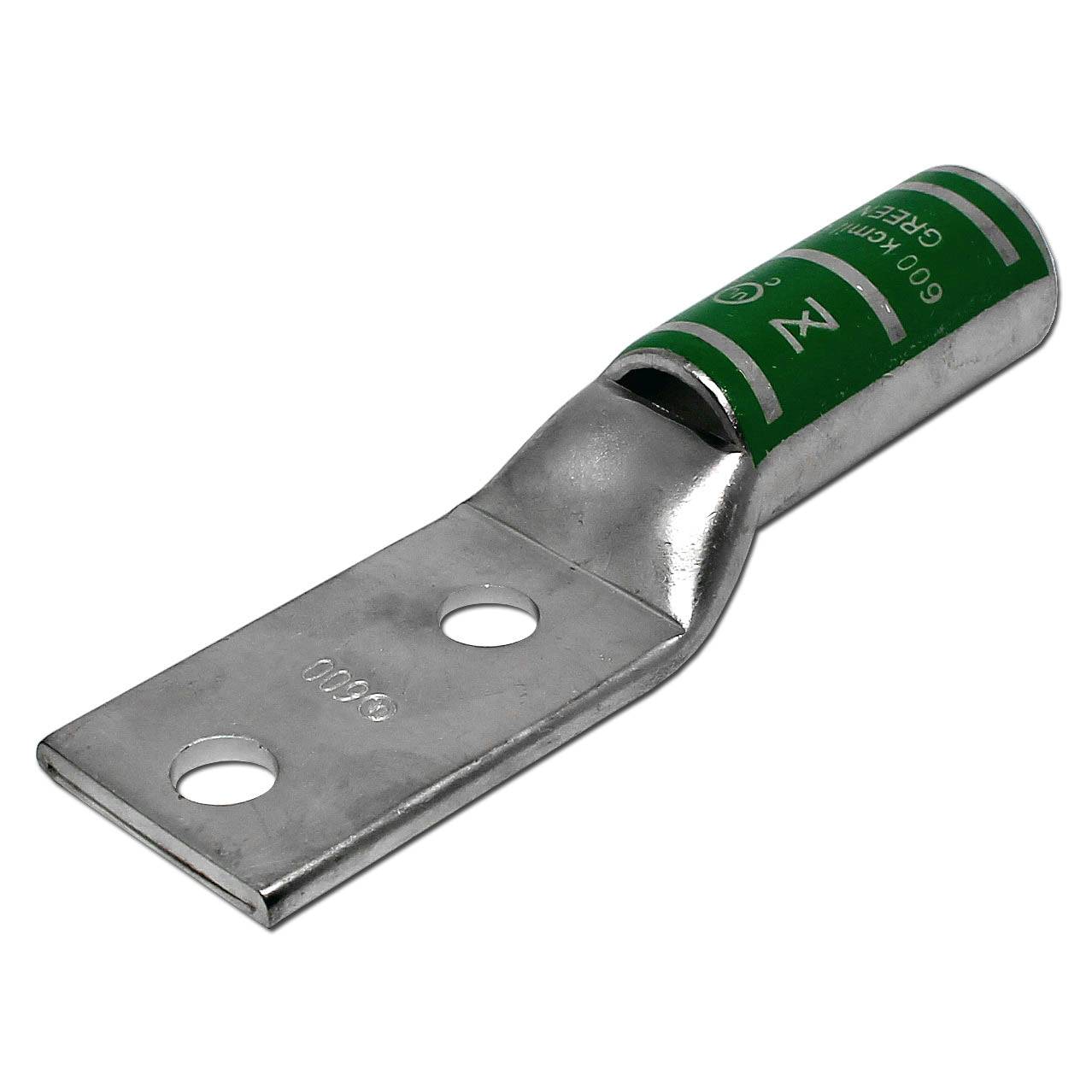

Procurement reference model: LT60012. Wire Size: 600MCM; Stud Size: 1/2"; Color: Green. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 600MCM |
| Stud Size | 1/2" |
| Color | Green |
| L | 153.7mm (6.05") |
| L1 | 72.4mm (2.85") |
| L2 | 44.5mm (1.75") |
| D | 43.7mm (1.72") |
| D1 | 30.1mm (1.19") |
| D2 | 24.0mm (0.95") |
| B | 63.5mm (2.50") |
| E | 13.0mm (0.51") |
| F | 6mm (0.24") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Max Amp Rating | 420A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
