Technical reference

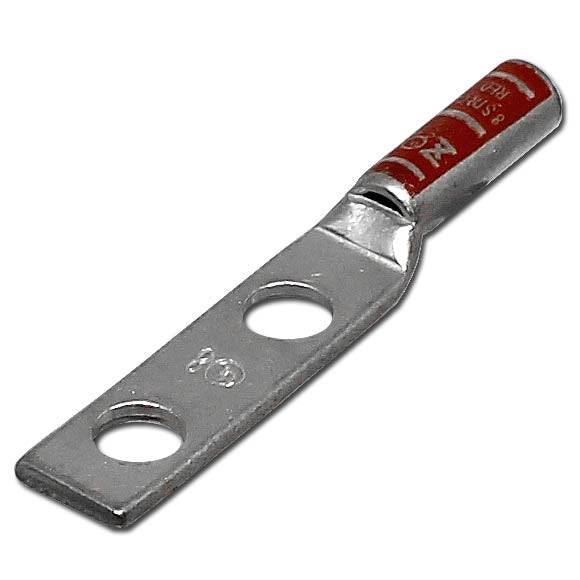

Procurement reference model: LT814A. Wire Size: 8 AWG; Stud Size: 1/4" Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 8 AWG |
| Stud Size | 1/4" Stud |
| Color | Red |
| L | 61.2mm (2.41") |
| L1 | 37.5mm (1.48") |
| L2 | 19.1mm (0.75") |
| D | 11.2mm (0.44") |
| D1 | 7.11mm (0.28") |
| D2 | 4.83mm (0.19") |
| B | 20.6mm (0.81") |
| E | 7.1mm (0.28") |
| F | 1.9mm (0.08") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Max Amp Rating | 50A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
