Technical reference

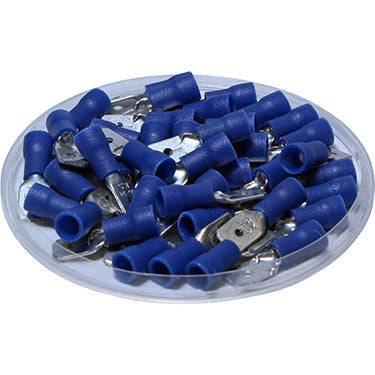

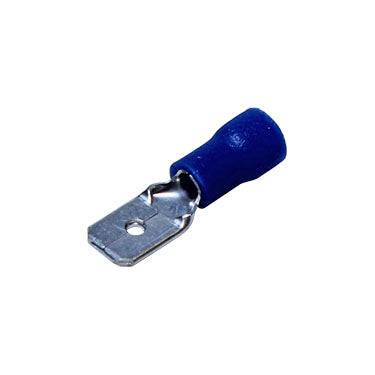

Procurement reference model: MDD2-187(5). Wire Size: 16-14 AWG; Color: Blue; Terminal Material: Tin Plated Brass. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |
| Terminal Material | Tin Plated Brass |
| Terminal Insulation | Vinyl |
| Voltage Rating | 600 Volts |
| AMP Rating | 10-15AMP |
| Temperature Rating | 105 o C |
| NEMA Tab | 0.02" X 0.18" (0.5mm X 4.75mm) |
| L | 19.8mm (0.78") |
| F | 6.5mm (0.25") |
| W | 4.8mm (0.18") |
| T | 0.5mm (0.20") |
| B | 10.5mm (0.41") |
| D | 4.7mm (0.18") |
| C | 2.3mm (0.09") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
