Technical reference

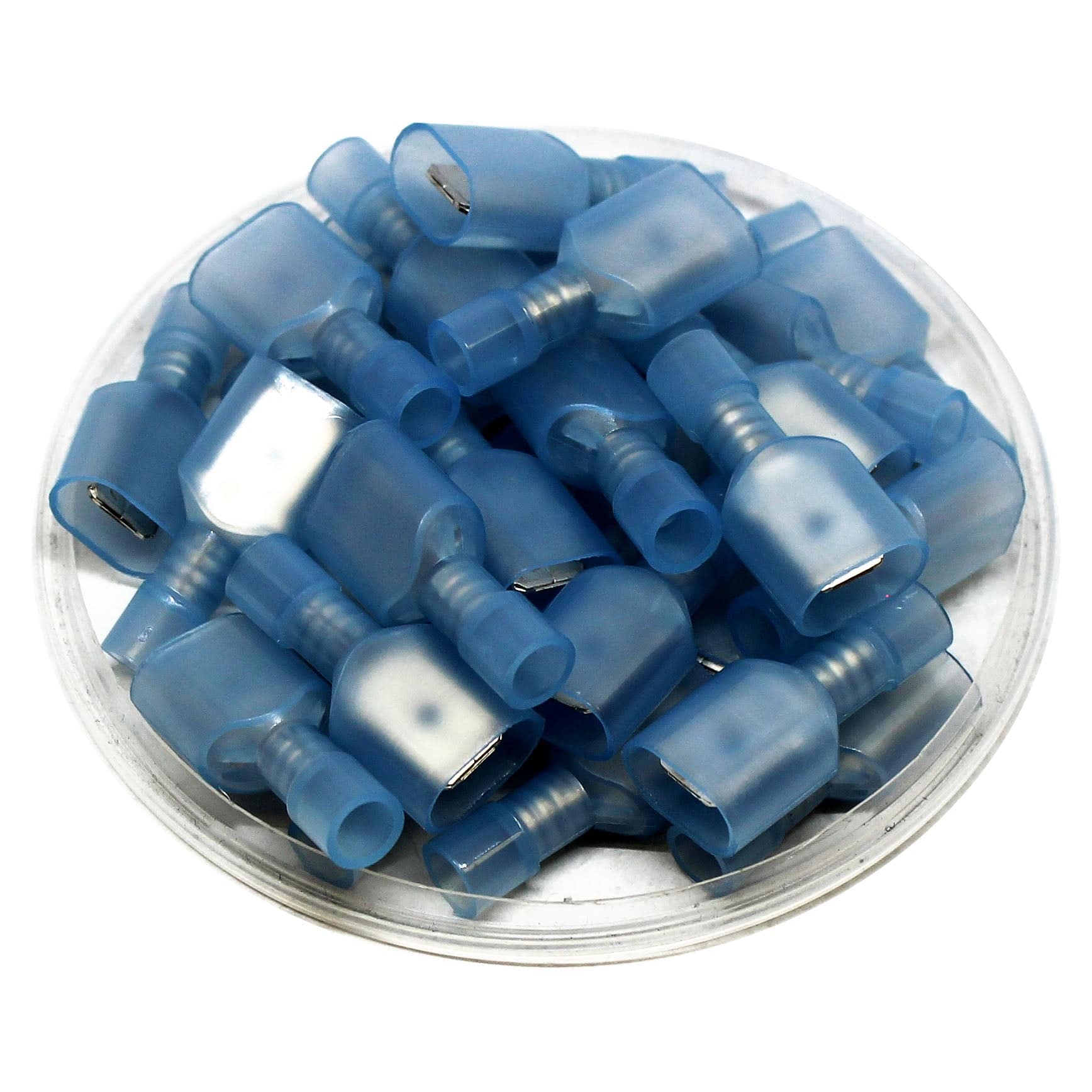

Procurement reference model: MDFN2-250. Wire Size: 16-14 AWG; Terminal Material: Tin-Plated Copper; Insulation Material: Nylon. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Insulation Profile | Oval |
| Color | Blue |
| Nema Tab | 0.8 x 6.35mm (0.03 x 0.25") |
| Temperature Rating | 75 o C |
| Voltage Rating | 300 Volts |
| Max Electrical Current | 15 AMP |
| T | 0.40mm (0.02") |
| L | 24.0mm (0.95") |
| F | 7.7mm (0.30") |
| B | 11.0mm (0.43") |
| W | 6.4mm (0.25") |
| D | 4.5mm (0.18") |
| C | 2.3mm (0.09") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
