Technical reference

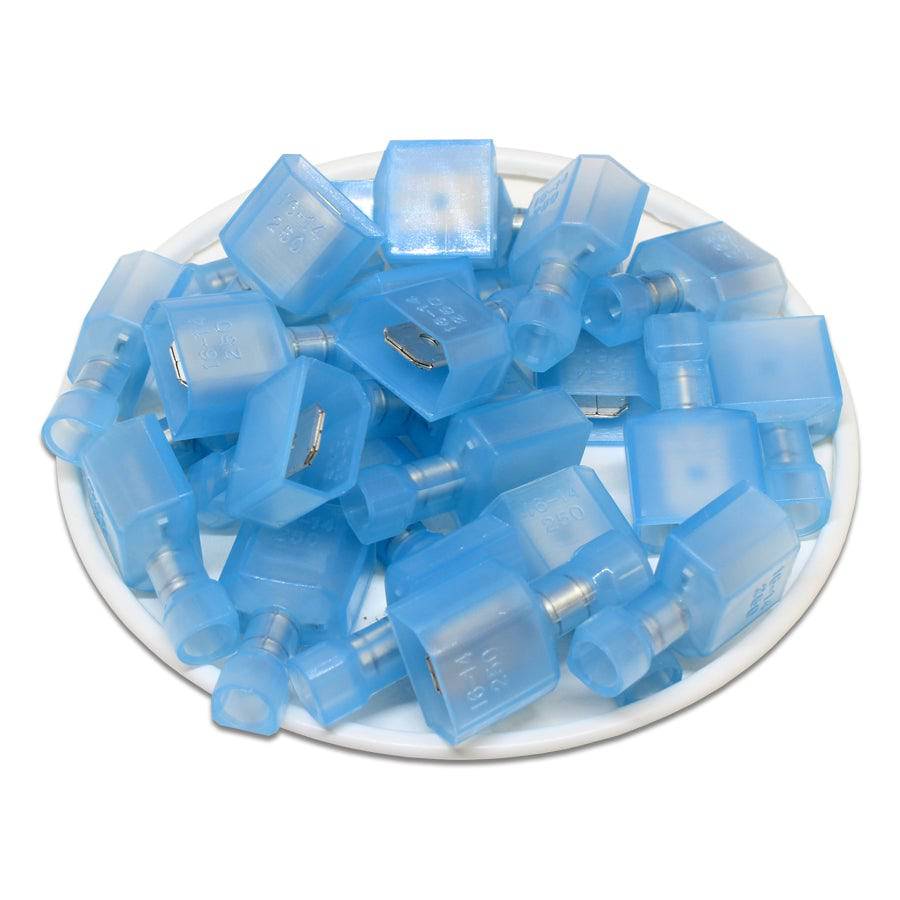

Procurement reference model: MDFNY2-250(A). Wire Range: 16-14 AWG; T: 0.02" (0.4mm); L: 0.89" (22.0mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| T | 0.02" (0.4mm) |
| L | 0.89" (22.0mm) |
| F | 0.31" (7.3mm) |
| B | 0.39" (10.0mm) |
| W | 0.25" (6.3mm) |
| D | 0.16" (4.2mm) |
| C | 0.09" (2.3mm) |
| NEMA Tab | 0.8mm x 6.35mm (0.03" x 0.25") |
| Terminal Material | Tin-Plated Brass |
| Insulation Material | Nylon |
| Temperature Rating | 150 o C - 300 Volts |
| Max Electrical Rating | 15 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

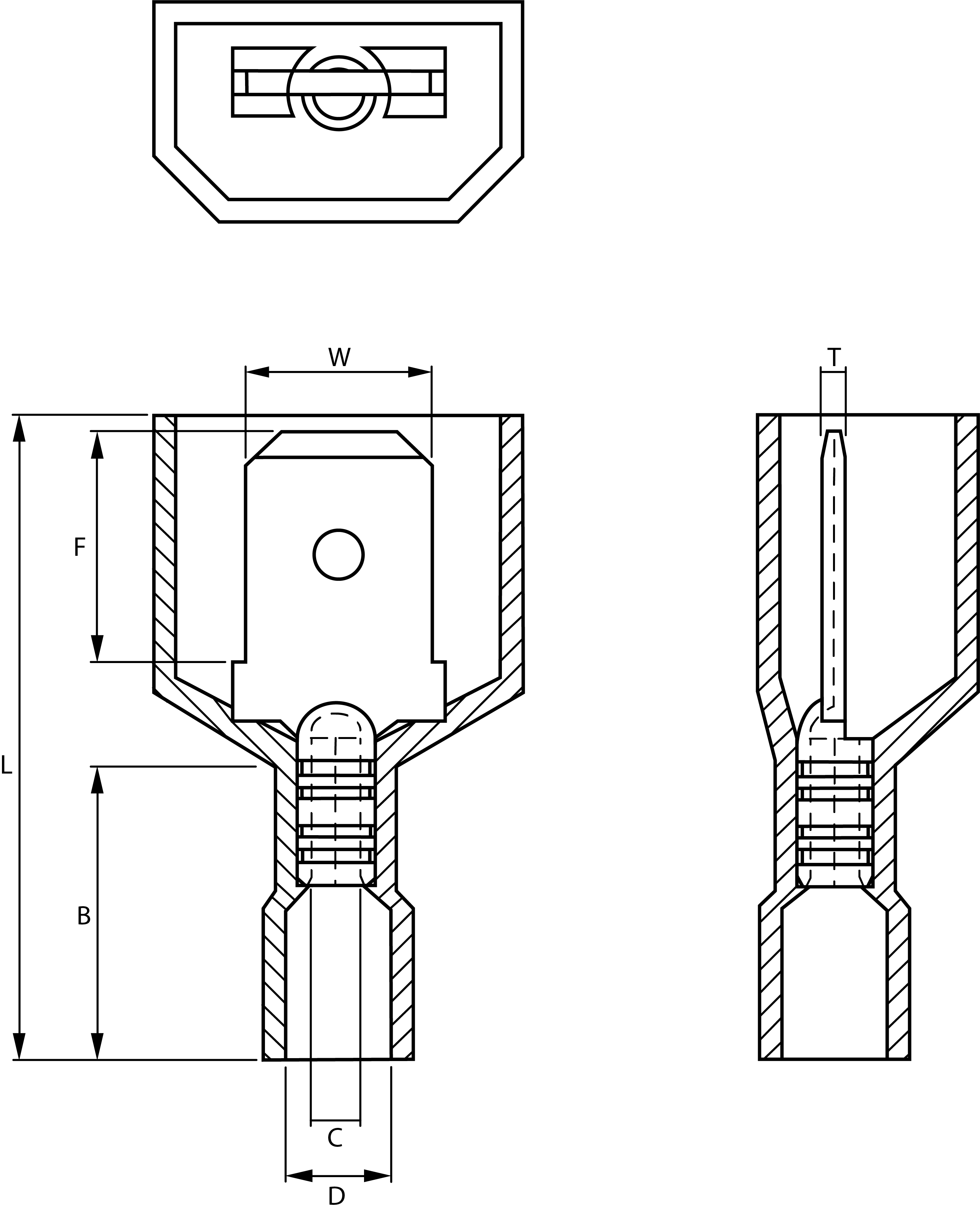

Drawings and product details
