Technical reference

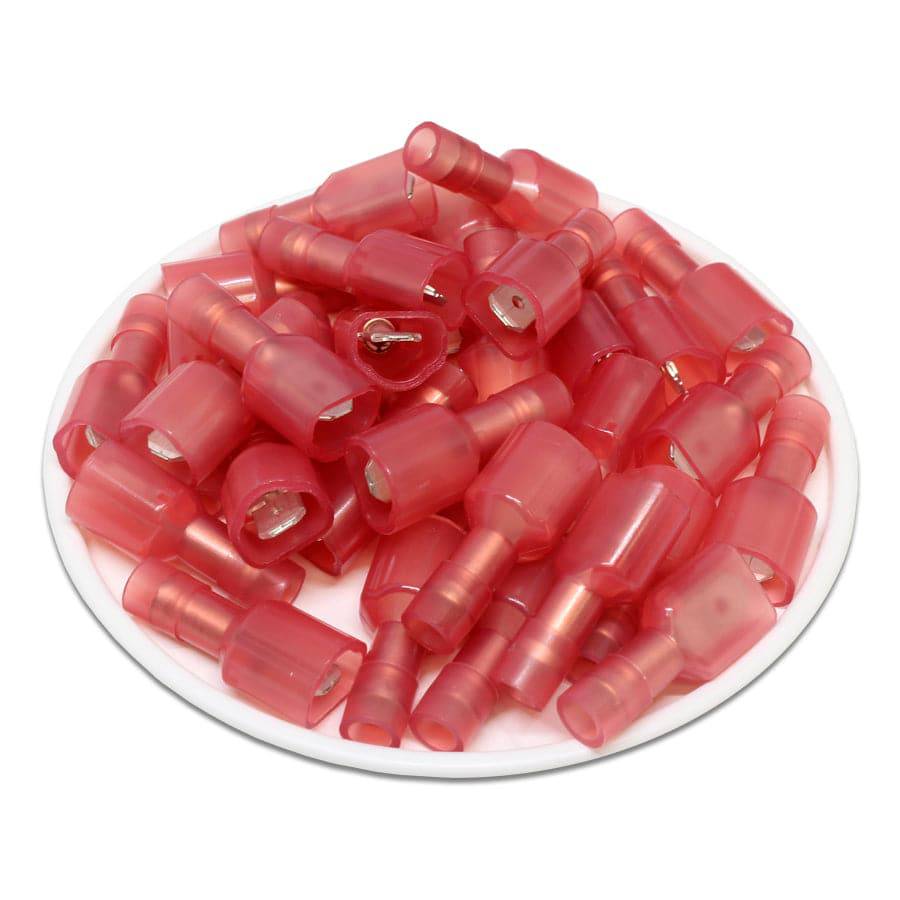

Procurement reference model: MDFNYD1-187(8). Wire Range: 22-16 AWG; L: 22.0mm (0.86"); F: 6.5mm (0.25"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16 AWG |
| L | 22.0mm (0.86") |
| F | 6.5mm (0.25") |
| W | 4.8mm (0.18") |
| T | 0.4mm (0.01") |
| B | 11.0mm (0.43") |
| D | 4.0mm (0.16") |
| C | 1.7mm (0.07") |
| Nema Tab | 0.32" X 0.18" (0.8mm X 4.7mm) |
| Terminal Material | Brass |
| Profile | Oval |
| Insulation Material | Nylon |
| Color | Red |
| AMP Rating | 22-16 AMP |
| Electrical Rating | 105 o C - 600 Volts |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
