Technical reference

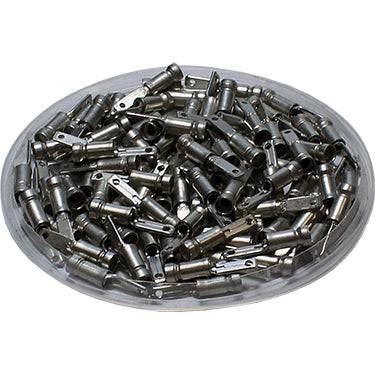

Procurement reference model: MDND1-110(8). Wire Range: 22-16 AWG; L: 17.2mm (0.68"); F: 6.5mm (0.26"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range | 22-16 AWG |
| L | 17.2mm (0.68") |
| F | 6.5mm (0.26") |
| E | 8.5mm (0.33") |
| W | 2.8mm (0.11") |
| D1 | 1.7mm (0.07") |
| D | 3.4mm (0.13") |
| Nema Tab | 0.03" X 0.11" (0.8mm X 2.8mm) |
| Terminal Material | Brass |
| AMP Rating | 10 AMP |
| CE Certified | Yes |
| RoHS Compliant | Yes |

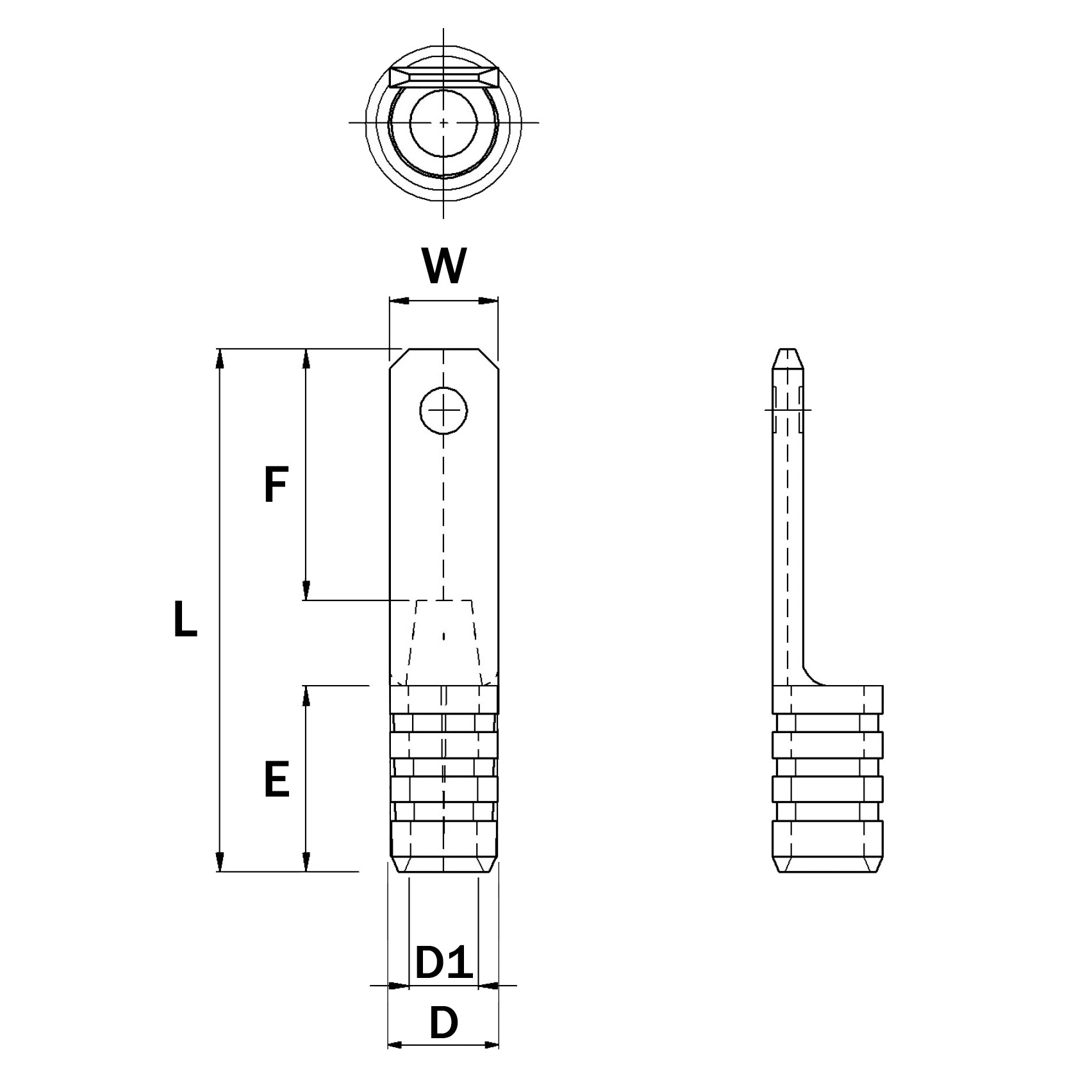

Drawings and product details
