Technical reference

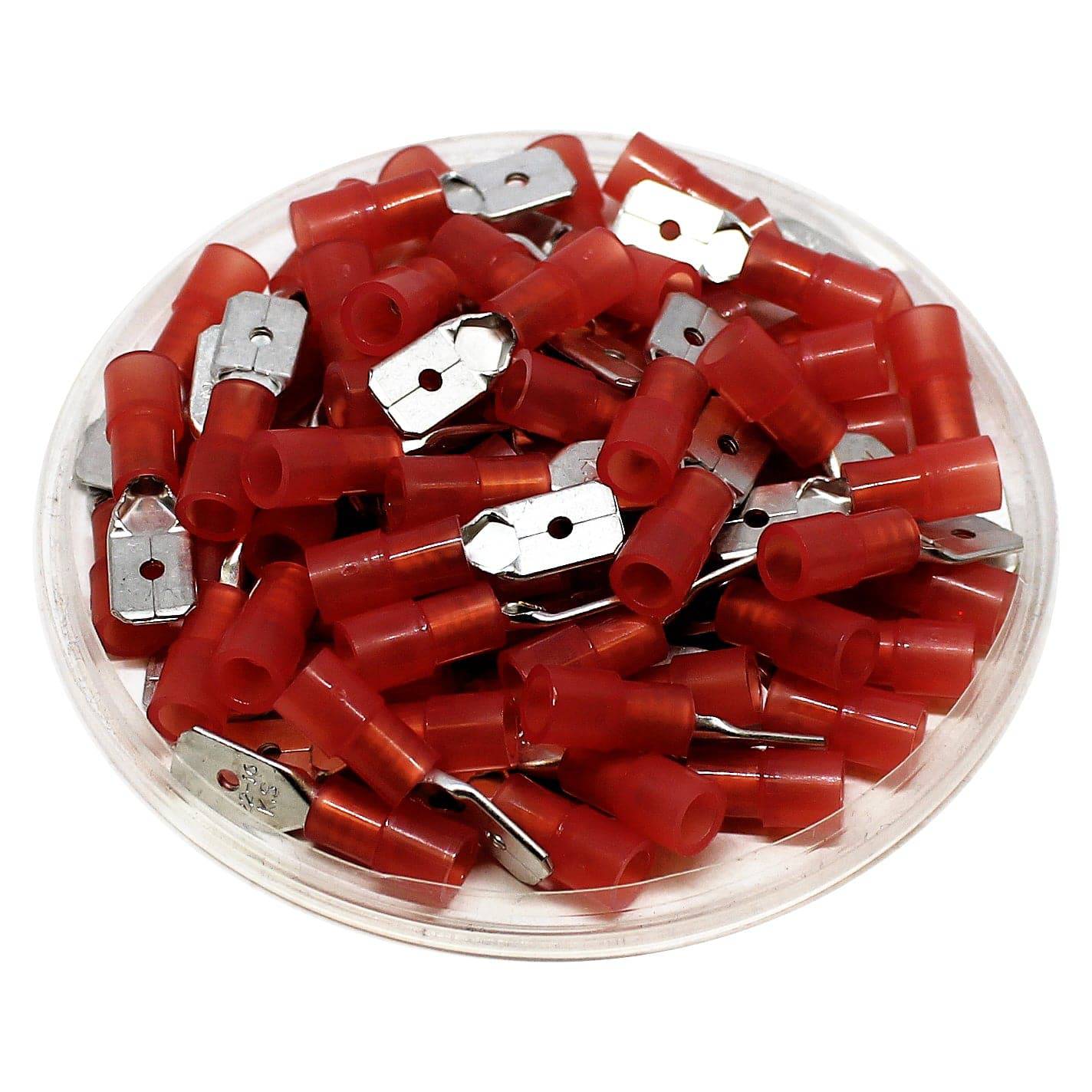

Procurement reference model: MDNYD1-250. Wire Size: 22-16 AWG; Color: Red; W: 6.4mm (0.25"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 22-16 AWG |
| Color | Red |
| W | 6.4mm (0.25") |
| F | 7.6mm (0.30") |
| L | 22mm (0.87") |
| B | 11mm (0.43") |
| D | 4.0mm (0.16") |
| C | 1.7mm (0.07") |
| Nema Tab | 0.8 x 6.4mm (0.032 x 0.250") |
| Terminal Material | Brass (with copper sleeve) |
| Insulation Material | Nylon |
| Electrical Rating | 105°C - 600 Volts |
| Amp Rating | 10AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
