Technical reference

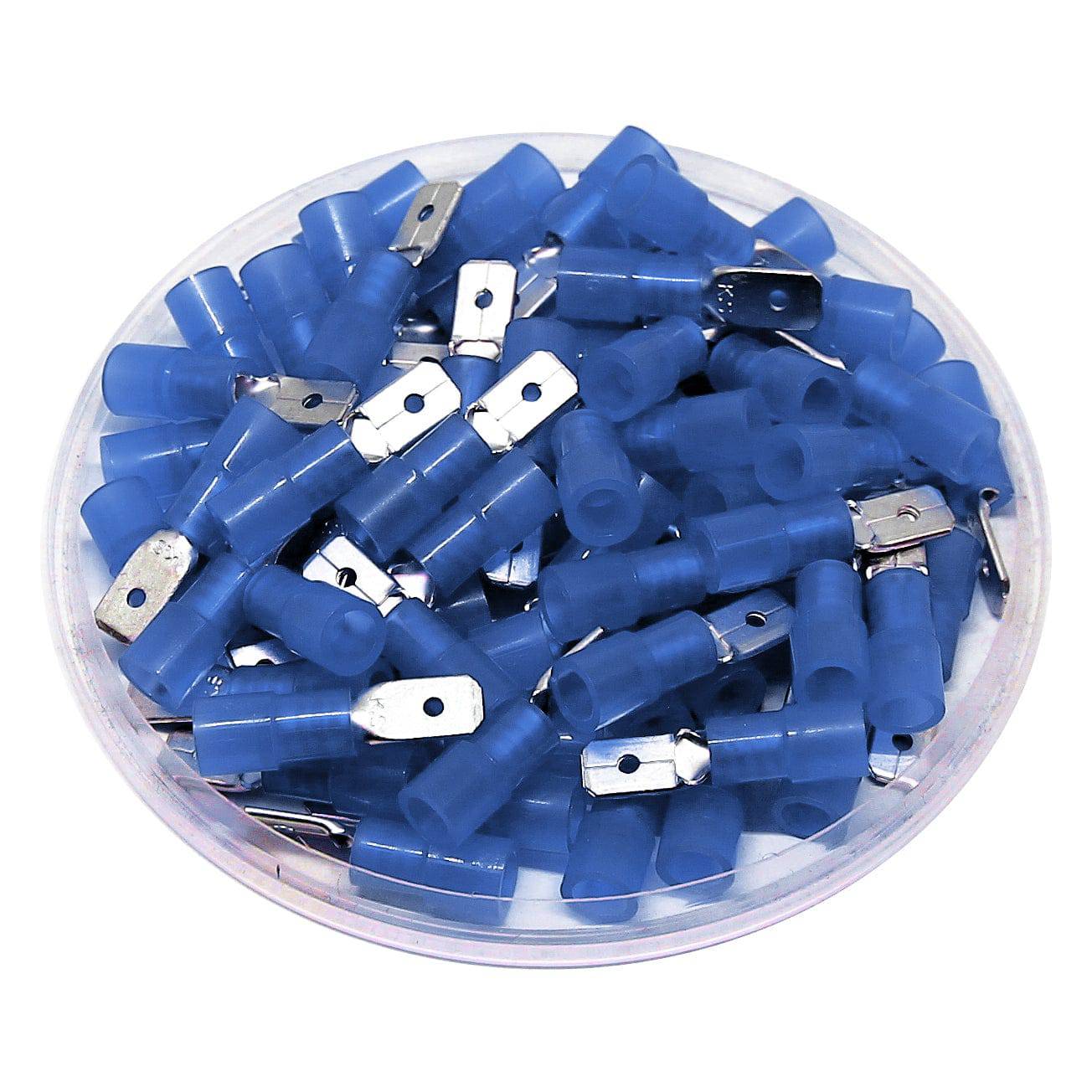

Procurement reference model: MDNYD2-187(5). Wire Size: 16-14 AWG; Color: Blue; W: 4.8mm (0.19"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |
| W | 4.8mm (0.19") |
| F | 6.5mm (0.26") |
| L | 20mm (0.79") |
| B | 11mm (0.43") |
| D | 4.5mm (0.18") |
| C | 2.3mm (0.09") |
| Nema Tab | 0.5 x 4.8mm (0.020 x 0.187") |
| Terminal Material | Brass (with copper sleeve) |
| Insulation Material | Nylon |
| Electrical Rating | 105°C - 600 Volts |
| Amp Rating | 15AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
