Technical reference

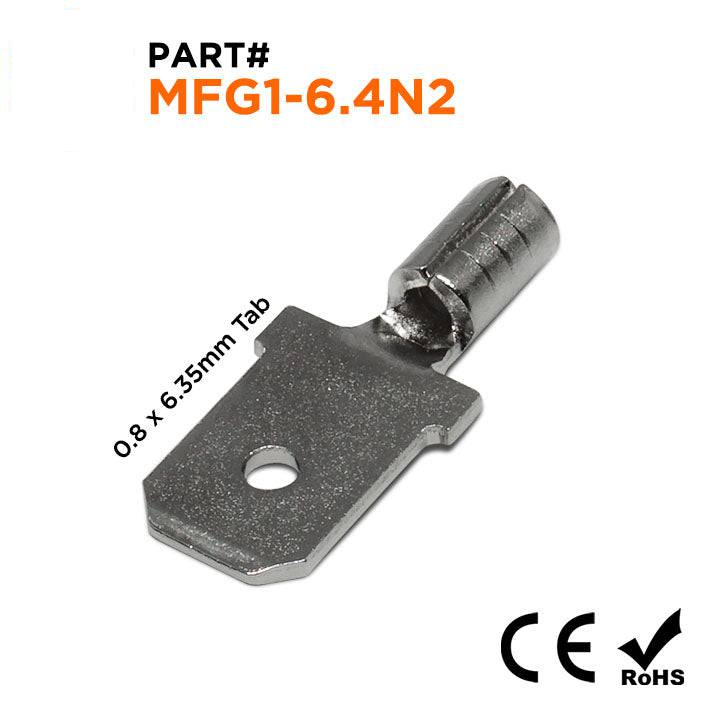

Procurement reference model: MFG1-6.4N2. Wire Size: 22-16 AWG; L: 17.6mm (0.693"); F: 7.5mm (0.30"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| L | 17.6mm (0.693") |
| F | 7.5mm (0.30") |
| E | 5.0mm (0.197") |
| W | 6.35mm (0.250") |
| D1 | 1.6mm (0.063") |
| D | 3.4mm (0.134") |
| Nema Tab | 0.8 x 6.35mm (0.03 x 0.25") |
| Max Electrical Current | 10AMP |
| Operating Temperature | 900°F (482°C) |
| Terminal Material | Nickel Plated Steel |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
