Technical reference

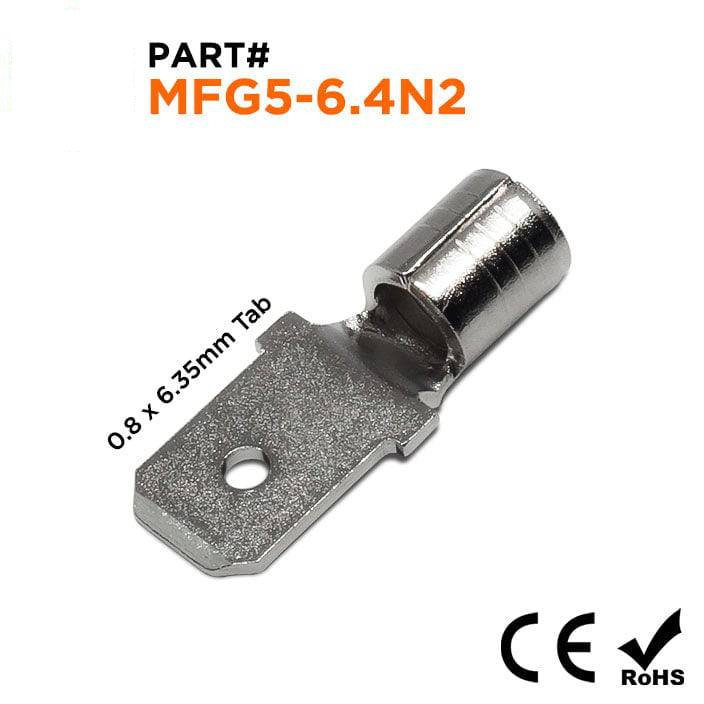

Procurement reference model: MFG5-6.4N2. Wire Size: 12-10 AWG; L: 18.6mm (0.732"); F: 7.5mm (0.30"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 12-10 AWG |
| L | 18.6mm (0.732") |
| F | 7.5mm (0.30") |
| E | 6.0mm (0.236") |
| W | 6.35mm (0.250") |
| D1 | 3.4mm (0.134") |
| D | 5.2mm (0.205") |
| Nema Tab | 0.8 x 6.35mm (0.03 x 0.25") |
| Max Electrical Current | 24AMP |
| Operating Temperature | 900°F (482°C) |
| Terminal Material | Nickel Plated Steel |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
