Technical reference

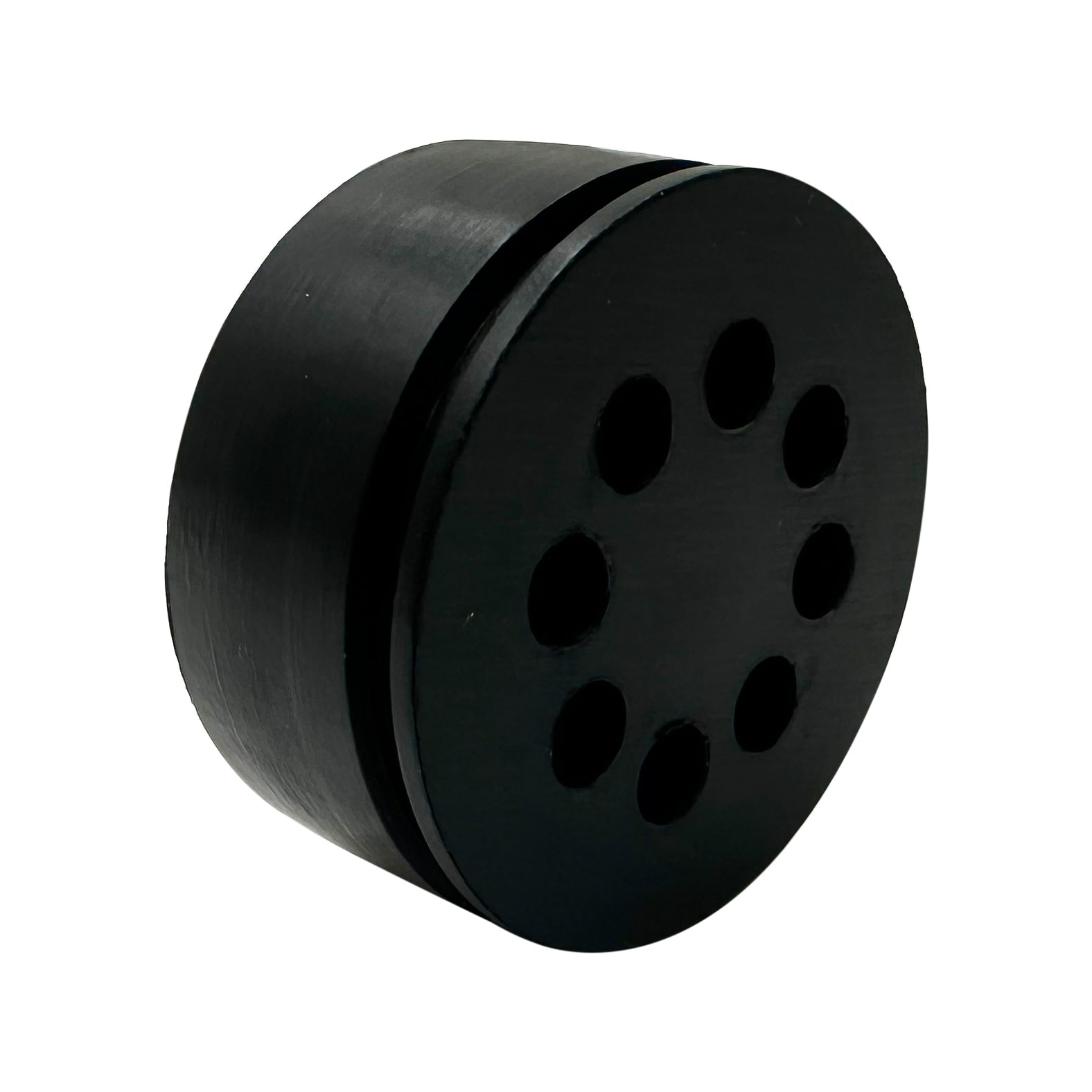

Procurement reference model: MHS1050. Compatible Gland Sizes: NPT1-1/2", PG36, M40; Holes: 8 Holes; Hole Diameter (D): 6mm (0.236"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Compatible Gland Sizes | NPT1-1/2", PG36, M40 |
| Holes | 8 Holes |
| Hole Diameter (D) | 6mm (0.236") |
| Length (L) | 42.6mm (1.68") |
| Width (W) | 19.7mm (0.76") |
| Seal Material | NBR ( Nitrile Rubber) |
| Ingress Protection | IP68 |
| REACH Compliant | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

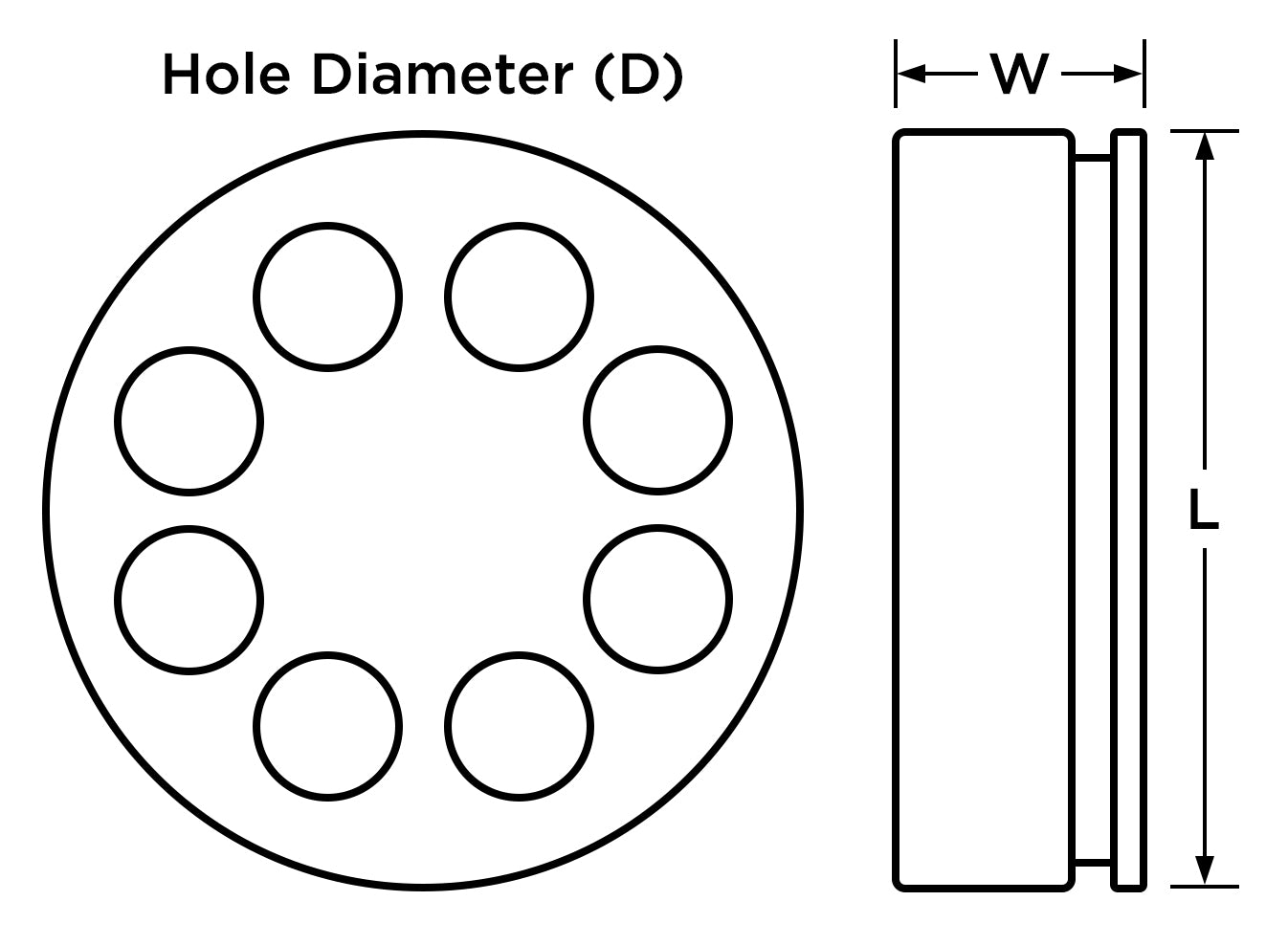

Drawings and product details
