Technical reference

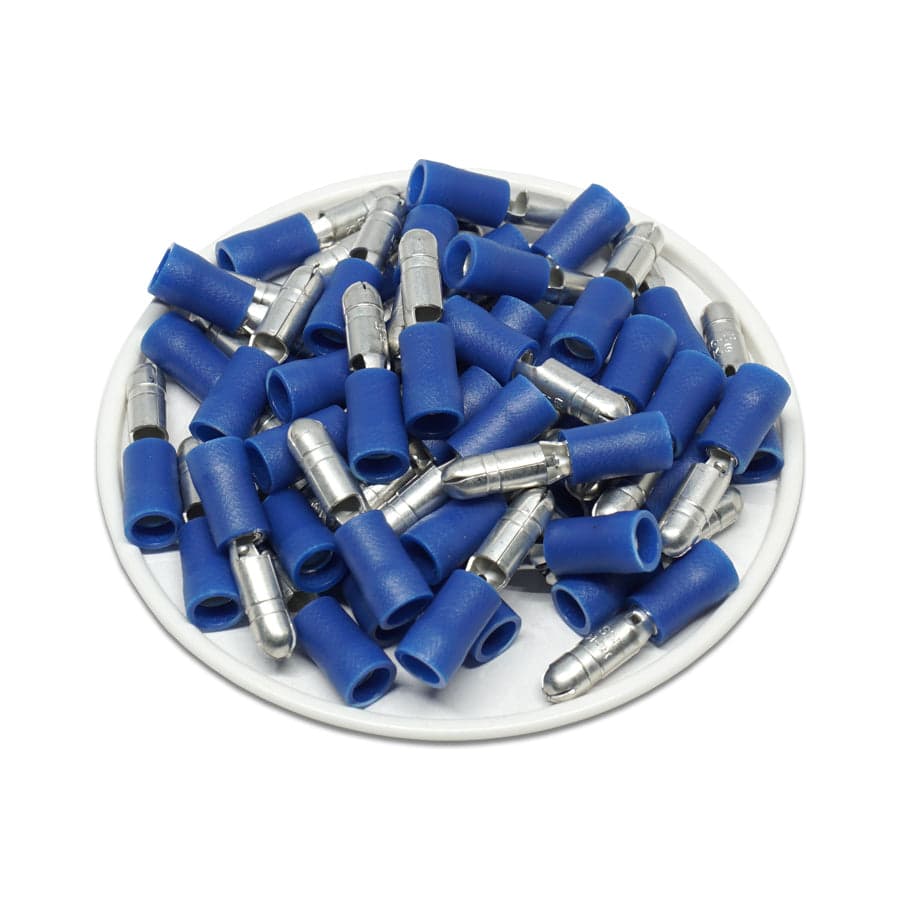

Procurement reference model: MPDL2-180. Wire Range: 16-14 AWG; W: 0.18" (4.5mm); F: 0.41" (11.0mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| W | 0.18" (4.5mm) |
| F | 0.41" (11.0mm) |
| L | 0.94" (24.0mm) |
| B | 0.41" (10.5mm) |
| D | 0.18" (4.7mm) |
| T | 0.01" (0.4mm) |
| Terminal Material | Brass |
| Insulation Material | Vinyl |
| Insulation Color | Blue |
| Temperature Rating | 105 o C |
| Max AMP Rating | 15 AMP |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
