Technical reference

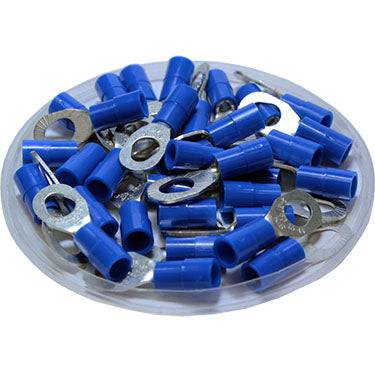

Procurement reference model: MSRNYB2-3753. T: 0.8mm (0.03"); L: 25.3mm (0.99"); F: 7.9mm (0.31"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| T | 0.8mm (0.03") |
| L | 25.3mm (0.99") |
| F | 7.9mm (0.31") |
| E | 11mm (0.43") |
| W | 8.6mm (0.34") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.09") |
| D2 & D3 | 3.7mm - 4.3mm - 5.3mm (0.15" - 0.17" - 0.21") |
| Stud Size | #6 - #8 - #10 |
| Color | Blue |
| Terminal Material | Copper |
| Insulation Material | Nylon |
| Max Electrical Rating | 600 Volts (105 o C) |
| Max Electrical Current | 30AMP |
| Seam | Brazed |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Reference wire range | 16 to 14 AWG |
Drawings and product details
